SKU: NDL-5872R/L
NASdeluxe NDL-5872R/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Manufacturer:
1

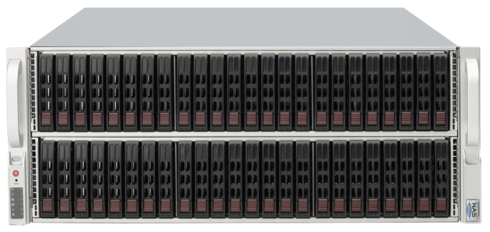

- 4U rackmount chassis with 72 SFF bays
- iSCSI/NFS failover for high availability with two systems
- Expandable with JBODs through SAS expansion port
- Modularly expandable with additional I/O cards
- Snapshot functionality
- Open-E DSS V7 software is certified for VMware vSphere 6.x and Citrix certified
The NASdeluxe NDL-5000R/L systems are unified storage systems that can be used individually or in a cluster. They offer block-based storage via iSCSI or Fibre Channel as well as file-based storage via NFS and/or CIFS/SMB. Systems with Open-E's DSS V7 operating system can be operated as iSCSI and NFS clusters with failover, even in active-active mode. The performance of both cluster nodes is available. The NDL-5000R/L systems are available in chassis variants of up to 72 drive bays.The basic NDL-5872R/L model in a 4U rackmount chassis with 72 SFF bays can be equipped with interface cards as required.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 105
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
Specifications
Drive bays
Drive bays 2.5" (hotswap)
72
Drive bays 3.5" (hotswap)
Drive bays 2.5" (rear option)
2
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SATA
SAS
SAS
max. number of nodes
Nodes (max.)
1
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1280W Netzteil
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
699 Millimeter (mm)
Height
178 Millimeter (mm)
Weight
30 Kilogram (kg)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
Yes
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Operating system
Open Source Operating System
No
High availability
No
Network
Active Directory Client
No
Networking (type)
Gigabit Ethernet
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
General
Model
NDL-5872R/L
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
7
USB 3.0 Ports (front/rear/internal)
0/2/3
USB 2.0 Ports (front/rear/internal)
0/2/6
File systems
File systems supported
XFS
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer defined drive partitioning
Customer defined system configuration
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
N/A
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
Supported protocols
Protocols supported (File)
CIFS/SMB, FTP, Secure FTP, HTTP, Apple Talk, NFS v3
Protocols supported (Block)
iSCSI
