New Thunderbolt 5 Rackmount from Areca

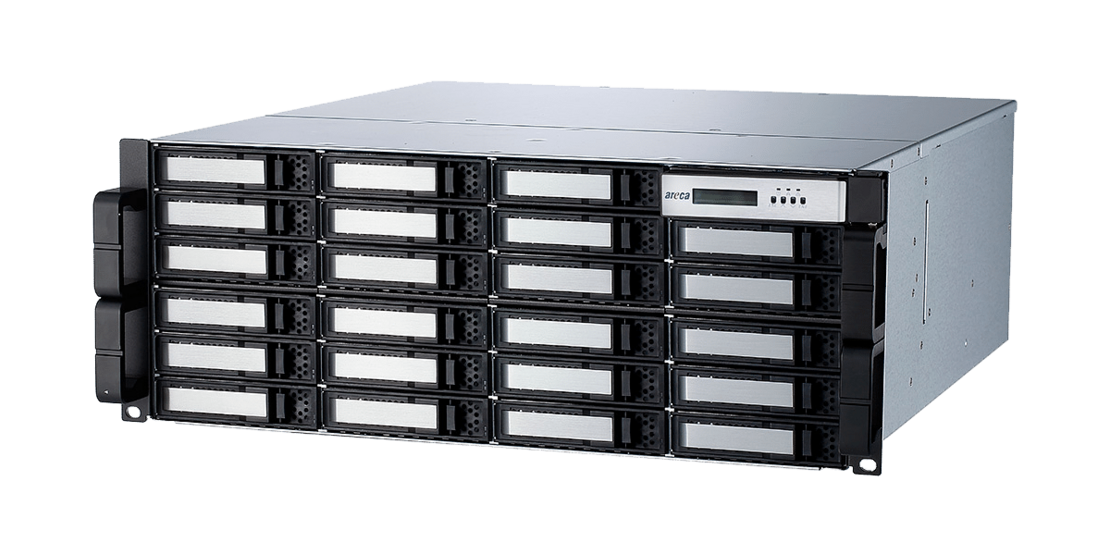

80Gbps and Beyond to the Host: Areca ARC-8050T5U-24R
Thunderbolt 5 Rackmount System

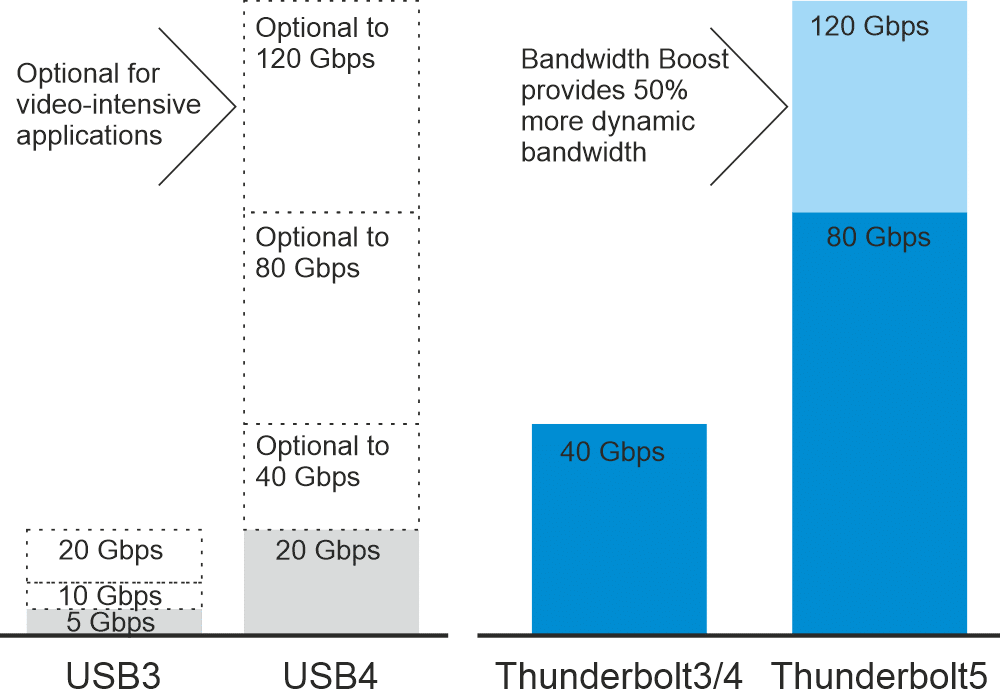

Our new 4U rackmount storage system, the Areca ARC-8050T5U-24R, is ideal for professional video and file workflows. Thanks to Thunderbolt 5, it provides up to 120 Gbps of bandwidth. The integrated hardware RAID controller, featuring a dual ARM A15 processor and 8 GB of ECC cache, supports RAID modes 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk, and JBOD.
The storage system comes standard with 24 SAS/SATA bays. Using an expansion port, a total of up to 512 drives can be managed through it. AES-256 encryption at the controller level protects data without any loss of performance—on both macOS and Windows.
Additional facts at a glance:
- 2x 80 Gbps Thunderbolt ports, compatible with USB-C (USB 3.2 Gen 2/Gen 1 and USB 2.0)
- 1x DisplayPort, 1x Ethernet port for management
- Thunderbolt 5 host: macOS 15.3 or later, Windows 11 (23H2) or later
USB host: Operating system-independent - Active Thunderbolt 5 (USB-C) cable with 120 Gbps included
- Advanced configuration for video-optimized performance settings
- Intelligent power-on/power-off function to ensure data integrity
- Configuration via the Thunderbolt/LAN port or the LCD display
- Supports cache backup modules to protect the cache
- Firmware update for all hard drives at once
On sale:
Areca ARC-8050T5U-24R
Fully equipped with 12 TB HDDs, providing 288 TB of raw capacity
- 24x 12 TB WD Ultrastar DC HC520, SAS 12 Gbit/s, 7200 rpm, 256 MB cache
- Includes installation and functional testing
14,350.– Euro
Areca ARC-8050T5U-24R
Fully equipped with 24 TB HDDs, providing 576 TB of raw capacity
- 24x 24 TB Toshiba MG11 HDDs, SAS 12 Gbit/s, 7200 rpm, 1024 MB cache
- Includes installation and functional testing
24,790.– Euro
Also available as a 12-bay model in a 2U format!
Connect in a hurry with 80 Gbps
This simple networking method, known as daisy chaining, is made possible by the two built-in TB5 ports. The rackmount system still offers an expansion port (SFF-8644) to expand capacity to a total of up to 512 drives. (Incidentally, the desktop RAID systems with 6 and 12 drive bays also have a built-in expansion port.)
Did you know...
- that these compact storage devices have been optimized for the media industry and operate very quietly thanks to their intelligent cooling system?
- that we offer extra-long Thunderbolt cables in pre-cut lengths of 10 and 15 meters—including for daisy chaining?
- that we also offer portable desktop storage systems from the ARC-8050-T5U series with four, six, eight, or twelve drive bays?
- that we’ll soon be adding a Thunderbolt 5 rackmount system from this series with 12 drive bays to our portfolio?
By the way, we are TÜV-certified
TÜV SÜD has renewed our ISO 9001 certification. This means that our quality management system is clearly understandable to every employee thanks to clearly defined and structured tasks and processes.
