SKU: ARC-8050T5U-8N

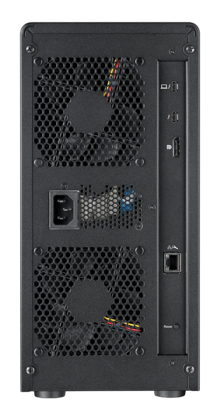

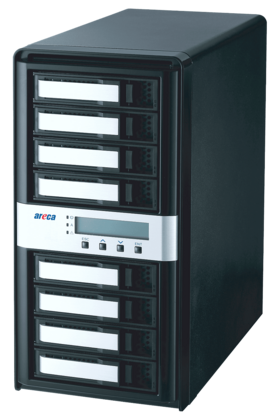

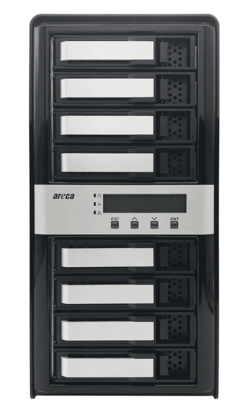

Areca ARC-8050T5U-8N

8-bay RAID storage for NVMe/SAS/SATA drives. Ideal for media workstations with Thunderbolt 5 – expansion port included

Manufacturer:

Discontinued

This product is currently no longer available.

Specifications

Independent of operating system (MAC, Windows, Linux)
2x Thunderbolt 5 ports or USB-C (USB 3.2 Gen2/Gen1/2.0), DisplayPort, and RJ45 management
8GB DDR4-2666 SDRAM
Intelligent power on/off function
BBM cache memory support option

The sophisticated storage boxes support USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and Thunderbolt 5 via a single connection. The fast RAID systems are available with 4, 6, 8, and 12 drive bays. As an operating system-independent storage system, installation is possible without additional software or drivers. To ensure the necessary security of the data stored on it, it supports RAID levels 0, 1, 10, 3, 5, 6, 30, 50, 60, single disk, and JBOD (the 4-bay models do not come with RAID levels 30, 50, or 60). The model presented here has a tri-mode controller and therefore has NVMe, SAS, and SATA ports built in. The compact storage devices are suitable for use wherever large amounts of data need to be quickly available at individual workstations. This is particularly true in the media industry, for example in audio or video editing and photo compositing. Since there must be no disturbing noises in these areas, Areca engineers have installed intelligent cooling in the ARC-8050T5U. It continuously adapts to the ambient conditions by automatically regulating the speed of the brushless fan.
