SKU: ARC-5066CL-24

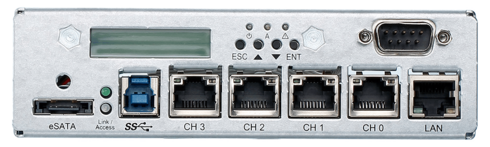

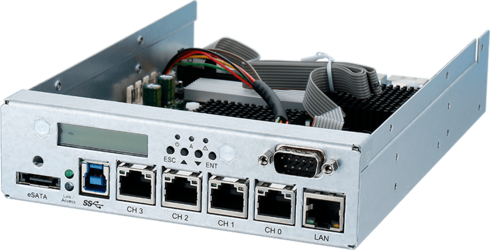

Areca ARC-5066CL-24
Through external RAID to Ethernet, eSATA and USB
Manufacturer:
Areca
1
- 24x 6.0 Gbps SATA disk channels
- Multiple hosts: 1GbE(x4), 6 Gbps eSATA, USB 3.0
- Up to 2GB cache, BBM optional
- LAN with MPIO, MC/S, trunking and LACP support
- RAID 6 and advanced power management
- With Link Aggregation Control Protocol: 415 MB/sec read, 324 MB/sec write
Areca's ARC-5066 RAID controller family includes models with 8, 12, 16, 24 SATA hard disk ports at 6.0 Gbps depending on storage needs. They support multiple host interfaces: eSATA III, iSCSI or USB 3.0The RAID subsystem provides uninterrupted reliability with a high degree of fault tolerance through RAID technology and advanced array management features. The iSCSI connections with four 1GbE ports deliver high throughput, advanced features, high availability and scalable capacities.
Similar products
External RAID Controller

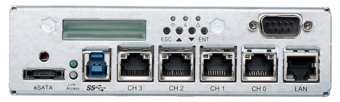

Areca ARC-5066CL-12
Through external RAID to Ethernet, eSATA and USB
Show product
External RAID Controller
Areca ARC-5066CL-16
Through external RAID to Ethernet, eSATA and USB
Show product
External RAID Controller

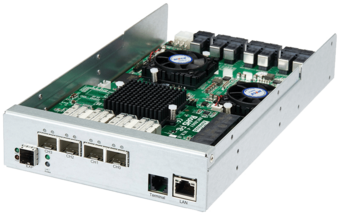

Areca ARC-8088F16-12
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088F16-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088F16-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller

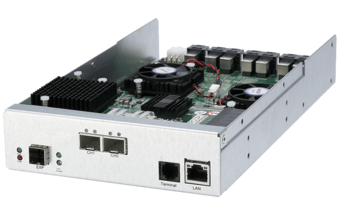

Areca ARC-8088I10-12
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088I10-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088I10-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller

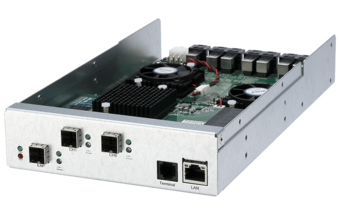

Areca ARC-8088SAS-12
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088SAS-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088SAS-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-9200FD-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FD-QR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FS-QR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200ID-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200IS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200SD-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200SS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
Specifications
Dimensions and Weight
FormFactor
5.25"
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passiv
Cache
2 GB
Transferrate
6
Manufacturer
Areca
Internal connectors
6x SFF-8087
Model
ARC-5066 Serie
Expansion and connectivity
Internal connectors
6x SFF-8087
Other Technical Features
Drives (max.)
24
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
