SKU: ARC-8050T3U-12

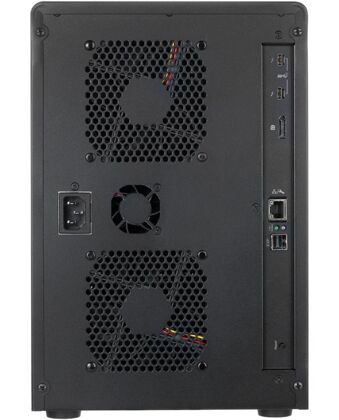

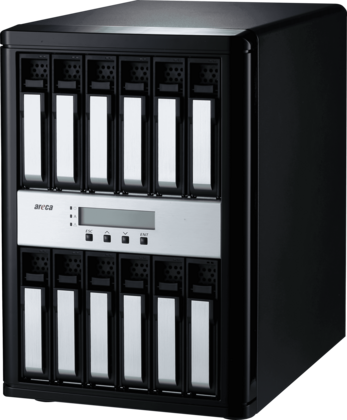

Areca ARC-8050T3U-12

Universal storage for solitary media workstations
Manufacturer:
1
Specifications
  • Independent of the operating system (MAC, Windows, Linux)
  • 2x Thunderbolt 3 ports, compatible with USB-C (USB 3.2 Gen2/Gen1/2.0)
  • BBM cache memory support
  • Intelligent power on/off function
  • LC display and control buttons on the front
  • Integrated web server

The sophisticated storage box handles USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 and Thunderbolt 3 via a single port, and the fast RAID systems are available with 4, 6, 8 and 12 drive bays. As an operating system-independent storage system, the installation succeeds without additional software or drivers. For the necessary security of the data stored on it, it supports RAID levels 0, 1, 10, 1E, 3, 5, 6, single disk or JBOD. The compact storage cubes are suitable wherever large amounts of data need to be quickly available at individual workstations. This is especially true for the media industry, for example in audio or video editing as well as in photo composing. Since there must be no disturbing noise, Areca's engineers installed an intelligent cooling system in the ARC-8050T3U. It continuously adapts to the ambient conditions by automatically regulating the speed of the brushless fan.


Similar products
RAID-System
Infortrend EonStor DS 3060GE
High-availability SAN solution for enterprises
RAID-System
Infortrend EonStor DS 3060GT2
High-availability SAN solution for enterprises
RAID-System
Infortrend EonStor DS 4024R2C
High-availability SAN storage for enterprise use
RAID-System
Infortrend EonStor DS 4024R2CB
High-availability SAN storage for enterprise use
RAID-System
Infortrend EonStor DS 4024S2C
High-availability SAN storage for enterprise use
RAID-System
Areca ARC-8050T3-12R
Erweiterbares Rackmount-System mit Thunderbolt 3
RAID-System

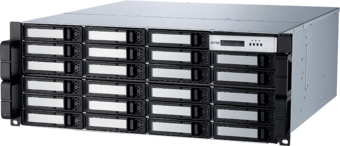

Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
RAID-System

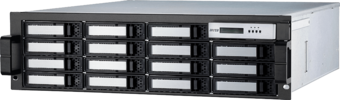

Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
RAID-System
Areca ARC-8042-12
Silent data protector
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
RAID-System
Netstor NA460C
External RAID system with a difference
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
RAID-System
RAIDdeluxe RDL-CD24F16D-R4
Budget with class: Solidly built RAID systems
RAID-System
RAIDdeluxe RDL-CS24F16D-R4
Budget with class: Solidly built RAID systems
RAID-System
RAIDdeluxe RDL-CS24F32Q-R4
Budget with class: Solidly built RAID systems
Specifications
Drive bays
Drive bays 3.5" (hotswap)
12
2.5" compatible
Yes
Host connectors per controller
Host-Board-Slots (per controller)
Onboard Host Interfaces (per controller)
2x 40Gbit/s Thundebolt 3
Other Technical Features
Drives (max.)
512
RAID controller
Single
Scale-Out architecture
No
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Onboard SAS-Expansionports (per controller)
1x 12Gbit/s miniSAS HD
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
2 Gigabyte (GB)
Public Cloud Gateway
Public Cloud Gateway
No
Dimensions and Weight
FormFactor
Desktop
General
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Model
ARC-8050T3U Tower Serie
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Supported protocols
Protocols supported (File)
-
Protocols supported (Block)
Thunderbolt 3
USB 3.2 Gen. 2
Protocols supported (Object)
-
