SKU: ESDS-3060GT2

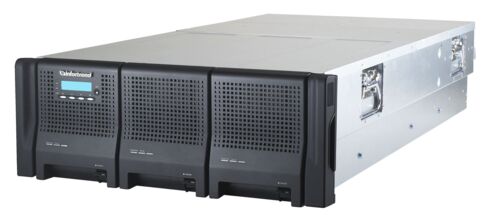

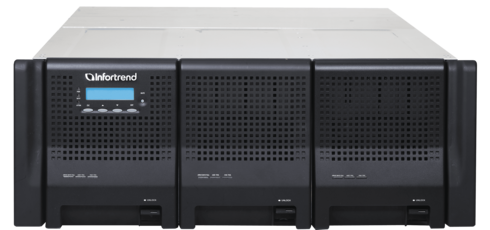

Infortrend EonStor DS 3060GT2
High-availability SAN solution for enterprises
Manufacturer:
Discontinued
Dieses Produkt ist aktuell nicht mehr verfügbar.
- The ideal solution for database, media and VDI applications
- SSD read cache and Automated Storage Tiering
- Remote Replication (optional) secures data off
- Snapshot, Volume Mirroring and Thin Provisioning
- Fast failover for high data availability
- Intuitive user interface (SANWatch)
The turbo model EonStor DS-3060GT2 from Infrotrend focuses on high performance, but can also provide large capacities. The single controller system on 4U with 60 bays already offers integrated Gigabit Ethernet ports ex works. Along the way, it improves SAN/DAS deployments at SMBs as well as large enterprises by being fast and reliable, having modular components, being user-friendly to manage, and coming with comprehensive software packages.
Similar products
RAID-System
Infortrend EonStor DS 4024R2C
High-availability SAN storage for enterprise use
To the store
RAID-System
Infortrend EonStor DS 4024R2CB
High-availability SAN storage for enterprise use
To the store
RAID-System
Infortrend EonStor DS 4024S2C
High-availability SAN storage for enterprise use
To the store
RAID-System
Areca ARC-8050T3-12R
Erweiterbares Rackmount-System mit Thunderbolt 3
To the store
RAID-System

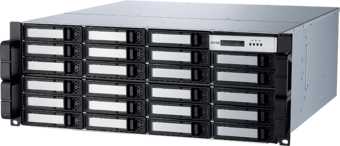

Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
To the store
RAID-System

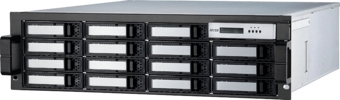

Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
To the store
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
To the store
RAID-System
Areca ARC-8050T3U-12
Universal storage for solitary media workstations
To the store
RAID-System
Areca ARC-8042-12
Silent data protector
To the store
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
To the store
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
To the store
RAID-System
Netstor NA460C
External RAID system with a difference
To the store
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
To the store
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
To the store
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
To the store
Specifications
Drive bays
Drive bays 3.5" (hotswap)
60
2.5" compatible
No
Host connectors per controller
Host-Board-Slots (per controller)
1
Other Technical Features
Drives (max.)
448
RAID controller
Single
Scale-Out architecture
No
RAID levels suppored
0, 1,(1+0), 3, 5, 6, 10, 30, 50, 60
Administration
Dedicated Management Port
Yes
Serial port
Yes
Management Software
SANWatch, RAIDWatch
Memory per controller
Memory capacity (fully populated)
16 Gigabyte (GB)
Processor
Processor Manufacturer
Intel
Public Cloud Gateway
Public Cloud Gateway
No
Dimensions and Weight
FormFactor
4 HE Rackmount
General
RAID levels suppored
0, 1,(1+0), 3, 5, 6, 10, 30, 50, 60
Model
DS 3060
Enclosure backplane
Backplane (bandwidth)
6Gbit/s SAS
Software
Software features (optional)
Automated Storage Tiering
Local Replication Advanced
Remote Replication
SSD Caching
Local Replication Advanced
Remote Replication
SSD Caching
Softwarefeatures inclusive
Local Replication Standard
SED Management
Thin Provisioning
SED Management
Thin Provisioning
Supported protocols
Protocols supported (Block)
FC
iSCSI
SAS
iSCSI
SAS
Protocols supported (Object)
Cinder
