SKU: ESDS-4024S2CB

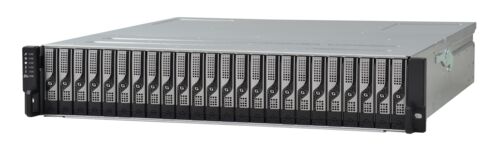

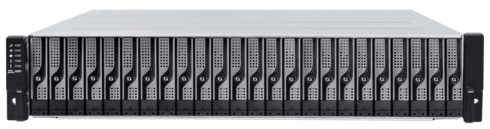

Infortrend EonStor DS 4024S2CB
High-availability SAN storage for enterprise use
Manufacturer:
Infortrend
Discontinued
This product is currently no longer available.
- Stable high throughput for even the most demanding applications
- SSD Cache and Automated Storage Tiering
- Flexible interface options in FC, SAS, iSCSI and FCoE
- 12 Gbps SAS technology
- High scalability up to 444 drives
- Controller backup via Super Capacitor
As a 2U model with its 24 SFF bays, the EonStor DS-4024S2CB from Infortrend already belongs to the next generation of single controller systems. This RAID system offers an excellent price-performance ratio. In addition, its performance with 750,000 IOPS (end-to-end), 11,000 MB/s sequential read and 5,500 MB/s sequential write throughput is top in the industry. Besides, the series impresses with high scalability, user-friendly operation and flexible host board configuration.
Similar products
Specifications
Dimensions and Weight
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Serial port
Yes
Management Software
SANWatch, RAIDWatch
General
Manufacturer
Infortrend
RAID levels suppored
1
(1+0)
10
3
30
5
50
6
60
(1+0)
10
3
30
5
50
6
60
Model
DS 4024
Other Technical Features
RAID levels suppored
1
(1+0)
10
3
30
5
50
6
60
(1+0)
10
3
30
5
50
6
60
RAID controller
Single
Scale-Out architecture
No
Drives (max.)
448
Memory per controller
Memory capacity (fully populated)
64 GIGABYTE
Drive bays
Drive bays 2.5" (hotswap)
24
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Host connectors per controller
Host-Board-Slots (per controller)
2
Onboard Host Interfaces (per controller)
2x 1Gbit/s iSCSI RJ45
Processor
Processor Manufacturer
Intel
Public Cloud Gateway
Public Cloud Gateway
No
Software
Software features (optional)
Automated Storage Tiering
Remote Replication
SSD Caching
Local Replication Advanced
Remote Replication
SSD Caching
Local Replication Advanced
Softwarefeatures inclusive
Local Replication Standard
SED Management
Thin Provisioning
SED Management
Thin Provisioning
Supported protocols
Protocols supported (Block)
iSCSI
SAS
FC
SAS
FC
Protocols supported (Object)
Cinder
Memory
Cache Protection
Kondensator
