SKU: NA255A-XGPU

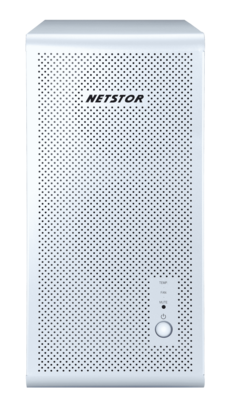

Netstor NA255A-XGPU

Per Express GPU upgrade: Connected at 128 Gbit/s
Manufacturer:
Netstor
1
Specifications
  • 128 Gbps PCIe 3.0 x16 PCIe host connection
  • Solid metal structure with elegant aluminum enclosure
  • Dedicated 1200-watt power supply
  • Two silent front fans for independent ventilation
  • Suitable for up to four dual-slot GPU or any single-slot PCIe cards
  • Monitoring via LEDs and buzzer alarm

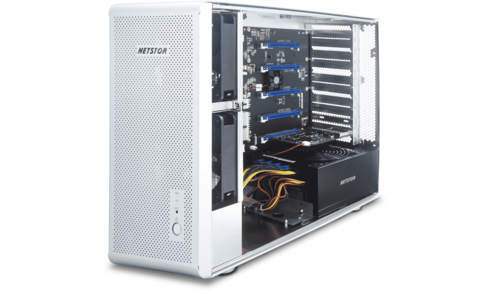

Netstor's NA255A GPU retrofit enclosure uses the latest PCI Express technology (PCIe Gen3 ×16) as the host interface. Thus, it enables fast cooperation between the up to four GPU cards (with double width) installed there and the host. The chassis itself has four PCIe 3.0 ×16 slots on the backplane. They handle all PCIe variations: ×1, ×4, ×8, and ×16 GPU or other PCIe cards. They are backward compatible for Gen2 GPU or PCIe cards. This allows any workstation with the Netstor NA255A to handle applications that require high performance: working with advanced color correction tools such as Blackmagic Design's DaVinci Resolve, data analysis for real-time business decisions, machine learning or deep learning, and computational programs such as MATLAB, Mathematica and LabView.


Similar products
Specifications
Dimensions and Weight
FormFactor
Desktop
General
Manufacturer
Netstor
Model
Netstor TurboBox
Drive bays
2.5" compatible
No
