SKU: RDL-CD12S12D-R2V2

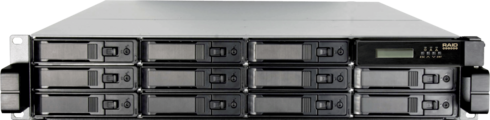

RAIDdeluxe RDL-CD12S12D-R2V2
Budget with class: Solidly built rackmount RAID systems
Manufacturer:
RAIDdeluxe
1
- Enterprise entry-level series
- 12 Gbps backplane
- Configuration and monitoring via LCD, RS232 or LAN
- User-friendly browser-based RAIDManager
- Controller with API Library
- Single Admin Portal" (SAP) manages multiple RAID systems
The RAIDdeluxe systems with 12 Gbps SAS host interface per controller rely on proven dual (CD)/single (CS) RAID controllers from Areca. They are equipped with a high performance dual core ROC. Systems from this series are energy efficient, operating system independent and can be used in various virtualization environments.
In the RDL-CD12/CS12 (2U), up to 12 SFF/LFF drives can be mixed with 12 Gbps SAS or 6 Gbps SATA hard disks/SSDs - depending on whether a fast database application or secure storage of large data volumes is required. Multiple JBODs can be connected to the already unlocked 12 Gbit/s miniSAS HD expansion ports - up to a total of 512 drives.
Similar products
Specifications
Dimensions and Weight
Width
482 Millimeter (mm)
Depth
542 Millimeter (mm)
Height
88.2 Millimeter (mm)
Weight
28 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
No
Serial port
No
General
Manufacturer
RAIDdeluxe
RAID levels suppored
1
10(1E)
3
30
5
6
60
Single Disk or JBOD
10(1E)
3
30
5
6
60
Single Disk or JBOD
Model
RAIDdeluxe C-Serie
Other Technical Features
RAID levels suppored
1
10(1E)
3
30
5
6
60
Single Disk or JBOD
10(1E)
3
30
5
6
60
Single Disk or JBOD
RAID controller
Dual-Redundant
Scale-Out architecture
No
Drives (max.)
512
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
12
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Host connectors per controller
Onboard Host Interfaces (per controller)
2 x 12Gb/s SAS
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/240 V (47/63 Hz)
Power supply
550 W
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
10-85%
Supported protocols
Protocols supported (Block)
SAS
