SKU: ARC-8042
Areca ARC-8042-12
Silent data protector
Manufacturer:
1
- RAID Level 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- RAID Migration, RAID expansion and dynamic expandability in operation
- 2x miniSAS HD (SFF-8644) host ports
- Cache support for write-through or write-back
- HDD firmware download
- Operating system independent

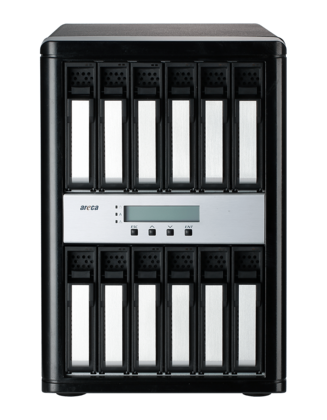

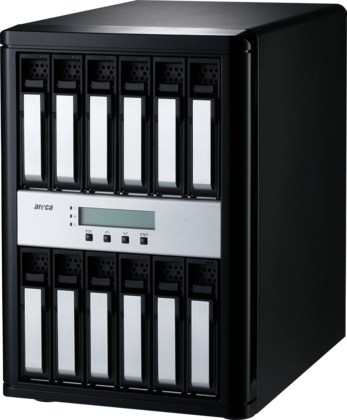

Areca's ARC-8042-12 provides large capacities in a small footprint as a SAS-to-SAS desktop RAID subsystem. Up to 12 Serial-Attached SCSI (SAS) drives at 12 Gbps or 12 Serial ATA (SATA) drives at 6.0 Gbps can be accommodated in this external storage enclosure. The high-performance dual-core ROC processor, 2GB RAM memory architecture and 12 Gbit/s SAS technology ensure high performance in the workflow.
Similar products
RAID-System
Infortrend EonStor DS 4024R2C
High-availability SAN storage for enterprise use
Show product
RAID-System
Infortrend EonStor DS 4024R2CB
High-availability SAN storage for enterprise use
Show product
RAID-System
Areca ARC-8050T3-12R
Erweiterbares Rackmount-System mit Thunderbolt 3
Show product

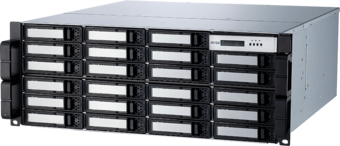

RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product

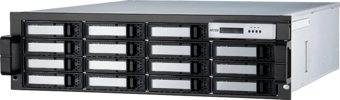

RAID-System
Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Drive bays
Drive bays 3.5" (hotswap)
12
2.5" compatible
Yes
Host connectors per controller
Host-Board-Slots (per controller)
Onboard Host Interfaces (per controller)
2x 12Gbit/s miniSAS HD (SFF-8644)
Other Technical Features
Drives (max.)
256
RAID controller
Single
Scale-Out architecture
No
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Onboard SAS-Expansionports (per controller)
1x 12Gbit/s miniSAS HD
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
2 Gigabyte (GB)
Public Cloud Gateway
Public Cloud Gateway
No
Dimensions and Weight
FormFactor
Desktop
General
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Model
ARC-8042
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Supported protocols
Protocols supported (File)
-
Protocols supported (Block)
SAS
Protocols supported (Object)
-
