SKU: AMB-MARS400-SES6UV

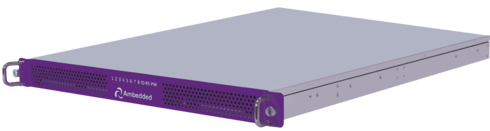

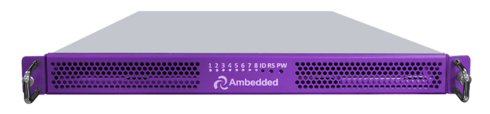

Ambedded Mars 400 SUSE Enterprise Storage 6

Storage without growing pains
Manufacturer:
Ambedded
Discontinued
This product is currently no longer available.
Specifications
  • Scalable Ceph appliance in performance and capacity as needed
  • ARM-based microserver architecture reduces risk of failure
  • SUSE software and support
  • Security in case of multiple rack/chassis/host/OSD failures
  • Self-healing dataset
  • Supports object storage, SAN and NAS on a single device

With its Ceph platform, the Mars 400 storage appliance offers a distributed open source SDS system. It thus ensures access to object, block and file storage. In addition, the storage system protects the data inventory by intelligently and sparingly distributing and replicating the individual fragments. If storage space is needed, it is sufficient to screw additional servers into the rack. The Auto Load Balance function ensures that the data is distributed among the mounted drives. With a little over 100 watts of power Mars 400 work extremely economical.


Linux specialist SUSE has designed its own software version for the Ceph storage appliance. The "Mars 400 SUSE Enterprise Storage 6" also gives customers additional support options.


Similar products
Specifications
Dimensions and Weight
Width
438 Millimeter (mm)
Depth
742 Millimeter (mm)
Height
44 Millimeter (mm)
Weight
20 Kilogram (kg)
FormFactor
1 HE Rackmount
Administration
Dedicated Management Port
Yes
General
Manufacturer
Ambedded
Model
Mars 400
Drive bays
2.5" compatible
No
Drive bays 3.5" (hotswap)
8
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
6Gbit/s SATA
Backplane (Type)
Discrete
Backplane (Conntector)
8x SAS/SATA
Network
# networking ports
4x
8x
Networking (type)
5 GB Ethernet
10 Gbit/s Ethernet
Plug type
RJ45
SFP+
Processor
Processor Manufacturer
Marvell
Processor type
8x ARM Quad-Core 64-bit Cortex-A72 1.2GHz
Processors (max.)
8
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Software
Operating Systems (certified)
Ambedded tunned Ceph community version Nautilus
SUSE Enterprise Storage 6
Power supply
installed
2
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
300W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Memory
Memory capacity (fully populated)
8x 4GB
Mass storage controller
Mass storage controller (bandwidth)
6 Gbit/s
