SKU: GRAID-1001-12

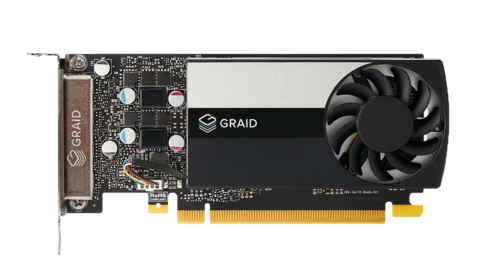

GRAID SupremeRAID SR-1001
GPU-based NVMe RAID card for 12 NVMe SSDs
Manufacturer:
Graid
1
- Unbridled NVMe performance for 12 SSDs
- Reduced cabling overhead
- High IOPS rates
- Saves CPU resources
GRAID SupremeRAID provides the maximum available SSD performance for your data center as an NVMe RAID card. This enables record-breaking NVMe SSD or NVMeoF performance over RAID without compromising data security or business continuity.
This breakthrough solution finally eliminates the traditional performance bottleneck of traditional RAID cards when combined with NVMe SSDs. It is also the first NVMeoF RAID solution: so it protects not only directly attached SSDs, but also those connected to the server via a JBOF (NVMe over Fabrics).
The GRAID SupremeRAID SR-1001 PCIe 3.0 adapter for 12 SSDs thus delivers lightning-fast SSD performance in AI-accelerated compute, AFA and HPC applications.
Similar products
NVMe RAID Controller
Areca ARC-1686-8I
Fast tri-mode RAID controller from Areca
Show product
NVMe RAID Controller

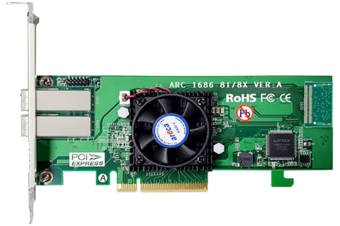

Areca ARC-1686-8X
Fast tri-mode RAID controller from Areca
Show product
NVMe RAID Controller
GRAID SupremeRAID SR-1000
GPU-based NVMe RAID card
Show product
NVMe RAID Controller
GRAID SupremeRAID SR-1010
GPU-based NVMe RAID card
Show product
NVMe RAID Controller

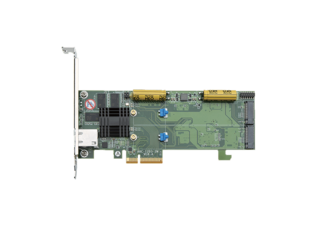

Areca ARC-1203-2N
RAIDy, steady, go! OS mirror controller for servers and NAS
Show product
Specifications
Dimensions and Weight
Weight
132.6 Gram (g)
FormFactor
AIC
General
Cooling type
Passiv
Manufacturer
Graid
PCIe Generation
3.0
RAID levels suppored
1
10
5
6
10
5
6
Model
SR-1010
Other Technical Features
RAID levels suppored
1
10
5
6
10
5
6
Drives (max.)
12
Memory
Memory (installed)
0 Gigabyte (GB)
Cache Protection
-
Memory capacity (fully populated)
-
Software
Operating Systems (certified)
Windows Server 2019
Windows Server 2022
Windows Server 2022
Administration
Management Software
CLI
