SKU: ESEV-5016GT4
Infortrend EonServ EV5016GT4
Highly integrated storage servers
Manufacturer:
Discontinued
Dieses Produkt ist aktuell nicht mehr verfügbar.
- Snapshots
- Local replication
- Multi-pathing (EonPath)
- Remote replication
- Thin provisioning
- High performance

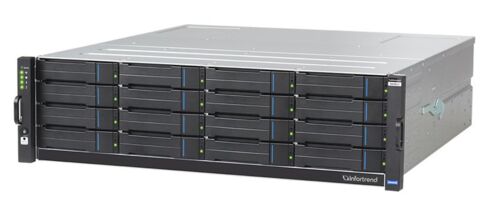

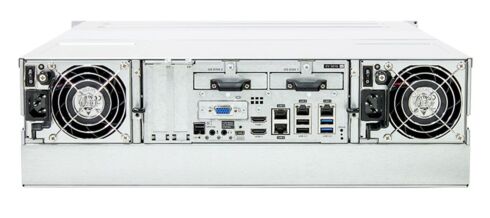

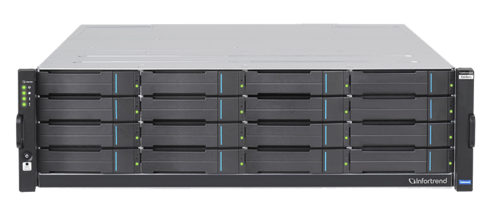

From the second generation EonServ 5000 series arose a hybrid server storage with a great price-performance ratio. Equipped with an Intel Core i3/Xeon E processor and a 12 Gbit/s SAS interface, the 16-bay EV-5016GT4 server on 2U supports, for example, hundreds of recording cameras in surveilance mode. Its removable OS hard disk slots and wireless modular hardware design benefit hassle-free maintenance in practice.
Similar products
Specifications
Drive bays
Drive bays 3.5" (hotswap)
16
2.5" compatible
Yes
Power supply
installed
2
Other Technical Features
Drives (max.)
316
RAID levels suppored
0, 1, 5, 6, 10, 50, 60
Administration
Dedicated Management Port
No
Serial port
No
Memory
Memory (installed)
8 Gigabyte (GB)
Memory capacity (fully populated)
32
Processor
Processor Manufacturer
Intel
Processor model
Intel® Xeon E3-1225
Rack mount rails
Quick release rails
No
Dimensions and Weight
FormFactor
3 HE Rackmount
General
RAID levels suppored
0, 1, 5, 6, 10, 50, 60
Model
EonServ 5000
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
1x PCIe 3.0 x8
USB 3.0 Ports (front/rear/internal)
2
USB 2.0 Ports (front/rear/internal)
2
Network
Networking (type)
4x 1Gbit/s iSCSI RJ45
Video Surveillance
Cameras (max.)
140x 3MP Kamera
