SKU: M-MQM8700-HS2F

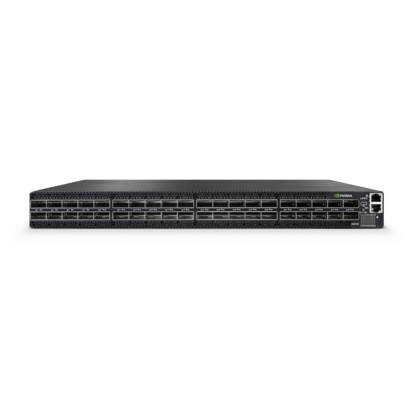

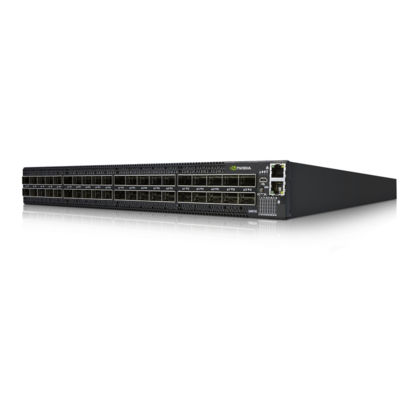

Mellanox MQM8700-HS2F

40-Port Non-blocking HDR 200 Gbps InfiniBand Smart Switch
Manufacturer:
Mellanox
Discontinued
This product is currently no longer available.
Specifications
  • 40x HDR 200 Gbps ports in 1U
  • 1+1 redundant and hot-swappable PSU
  • N+1 redundant and hot-swappable fans
  • C2P Airflow

Switches from the 8700 series improve the performance of MPI operations through SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) technology, thereby reducing the amount of data that must traverse the network. This in turn enables comparatively high fabric performance of up to 16 Tbps non-blocking bandwidth with port-to-port latency of less than 90 nanoseconds. QM8700 switches from Mellanox thus offer forty ports with a full bi-directional bandwidth of 200 Gbit/s each.Faster servers combined with high-performance storage and their applications, ultimately cause data bandwidth requirements to steadily skyrocket. Therefore, high performance computing (HPC) environments and enterprise data centers (EDC) need every last bit of bandwidth, which can thus be provided with these high-speed InfiniBand switches.


Similar products
Specifications
Dimensions and Weight
Width
42.8 Centimeter (cm)
Depth
59.06 Centimeter (cm)
Height
4.36 Centimeter (cm)
Weight
12.5 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
General
Switch stacking
No
Active cooling
Yes
Switch port speed
40x 200G
Networking ports
40
Manufacturer
Mellanox
Plug type
QSFP56
Model
Mellanox MQM8700 Series
Network
Networking (type)
Infiniband
Networking controller
x86 ComEx Broadwell D-1508, Mellanox Quantum
Plug type
QSFP56
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
85%
Rack mount rails
Rail type
Rackmount Kit
