SKU: M-MSB7800-ES2R

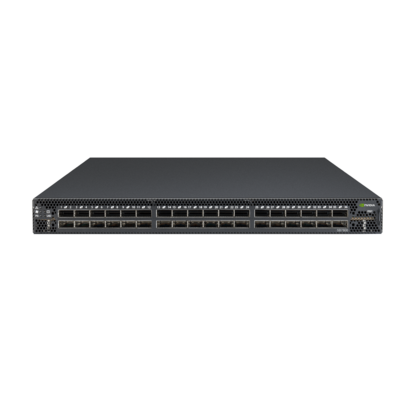

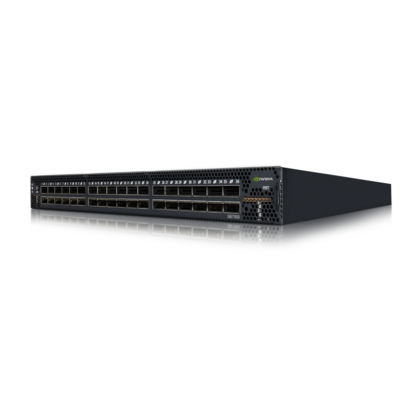

Mellanox MSB7800-ES2R
100 Gbps 36-Port QSFP28 InfiniBand EDR Switch
Manufacturer:
Mellanox
Discontinued
This product is currently no longer available.
- 36x EDR 100 Gbit/s ports in a 1U switch
- 7,2 Tbit/s switch throughput
- 90 ns switch latency
- 1+1 redundant and hot-swappable PSU
- N+1 redundant and hot-swappable fans
- C2P airflow
Intelligent switches from Mellanox's SB7800 series delivers high fabric performance of up to 7.2 Tbps with port-to-port latency of 90ns. Faster servers combined with high performance storage and their applications, are causing data bandwidth requirements to skyrocket. As a result, High Performance Computing (HPC) environments and Enterprise Data Centers (EDC) need every last bit of bandwidth delivered with Mellanox's high-speed InfiniBand switches.
Similar products
Specifications
Dimensions and Weight
Width
42.8 Centimeter (cm)
Depth
68.6 Centimeter (cm)
Height
4.36 Centimeter (cm)
Weight
12 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
General
Switch stacking
No
Active cooling
Yes
Switch port speed
36x 100G
Networking ports
36
Manufacturer
Mellanox
Plug type
QSFP28
Model
Mellanox SB7800 Series
Network
Networking (type)
Infiniband
Networking controller
Intel Celeron 1047UE (x86), Mellanox Switch-IB
Plug type
QSFP28
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
45 Celsius (°C)
Operating Relative Humidity
85%
Rack mount rails
Rail type
Rackmount Kit
