SKU: NDL-5708R
NASdeluxe NDL-5708R
Rackmount Enterprise NAS mit acht Einschüben und wählbaren OS
Manufacturer:
1

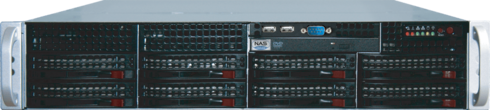

- 2U rackmount housing with eight LFF bays
- Outstanding storage performance
- Freely selectable network ports
- Fully assembled and tested
- Advance replacement and other support options available
Tried and tested NASdeluxe series for SMEs and enterprise customers in many areas of application: It can be used for virtualisation and VDI as well as for databases, media streaming and backup.
The basic model NDL-5708 in a 2U rackmount housing with eight LFF bays can be equipped with an optical drive and additional interfaces as required. The operating system is freely selectable: Windows, Open-E or TrueNAS. We can also deliver without an OS on request.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
To the store
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 105
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
To the store
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
To the store
Specifications
Drive bays
Drive bays 3.5" (hotswap)
8
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
SATA
SATA
max. number of nodes
Nodes (max.)
1
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
740W Netzteil
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
16 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
No
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Operating system
Open Source Operating System
No
High availability
No
Marketing
Exclusive
Yes
Network
Active Directory Client
No
Networking (type)
Gigabit Ethernet
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
General
Model
NDL-5708R
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
7
USB 3.0 Ports (front/rear/internal)
0/2/3
USB 2.0 Ports (front/rear/internal)
0/2/6
File systems
File systems supported
NTSF ReFS
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer defined drive partitioning
Customer defined system configuration
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Discrete
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 5, 6, 50, 60
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
Supported protocols
Protocols supported (File)
CIFS/SMB, NFS
Protocols supported (Block)
Fibre Channel
iSCSI
iSCSI
