SKU: NDL-5716R
NASdeluxe NDL-5716R
Rackmount Enterprise NAS with sixteen bays and selectable OS
Manufacturer:
1
- 3U rackmount housing with up to 16 LFF drives
- Outstanding storage performance
- Freely selectable network ports
- Fully assembled and tested
- Advance replacement and other support options available
Our NASdeluxe NDL-5000R family is built exactly according to customer requirements on a Supermicro basis: Processor, memory and interfaces can be selected from a wide range of possible components or chosen by the experts for the exact application required: From dual-socket boards with Intel Xeon Scalable processor, to up to six PCIe 3.0 slots and 10 Gbit/s Ethernet host ports.

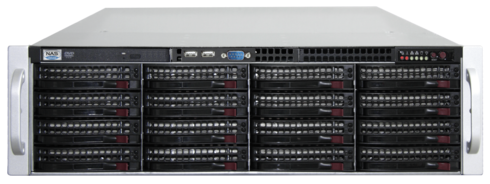

The NDL-5000R systems are available in rackmount or tower housing variants with up to 72 drive bays. The basic model NDL-5716R is installed in a 3U rackmount housing with 16 LFF slots and can be equipped with the necessary interfaces as required.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
To the store
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
To the store
NAS-System
Infortrend EonStor GSe Pro 105
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
To the store
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
To the store
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
To the store
Specifications
Drive bays
Drive bays 3.5" (hotswap)
16
Drive bays 2.5" (rear option)
2
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
SATA
SATA
max. number of nodes
Nodes (max.)
1
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1000W Netzteil
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
132 Millimeter (mm)
Weight
23 Kilogram (kg)
FormFactor
3 HE Rackmount
Administration
Dedicated Management Port
Yes
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
128 GB
Operating system
Open Source Operating System
No
High availability
No
Marketing
Exclusive
Yes
Network
Active Directory Client
No
Networking (type)
Gigabit Ethernet
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
General
Model
NDL-5716R/F
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
2
USB 3.0 Ports (front/rear/internal)
0/2/3
USB 2.0 Ports (front/rear/internal)
0/2/4
File systems
File systems supported
OpenZFS
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer defined drive partitioning
Customer defined system configuration
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Mass storage controller
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
N/A
Processor
Processor model
Intel® Xeon® E-2100/E-2200 Ürocessors 8./9. Generation Intel® Xeon® Corei3 Processors
Supported protocols
Protocols supported (File)
CIFS/SMB, NFS
Protocols supported (Block)
iSCSI
