SKU: NDL-5724R

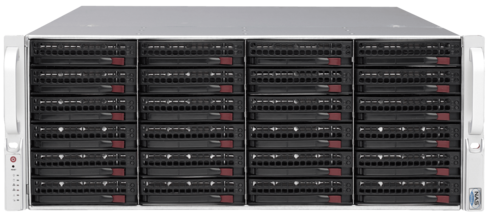

NASdeluxe NDL-5724R
Rackmount Enterprise NAS with 24 bays and selectable OS
Manufacturer:
NASdeluxe
1
- 4U rackmount housing with up to 24 LFF drives
- Outstanding storage performance
- Freely selectable network ports
- Fully assembled and tested
- Advance replacement and other support options available
Our NASdeluxe NDL-5000R family is built exactly according to customer requirements on a Supermicro basis: Processor, memory and interfaces can be selected from a wide range of possible components or chosen by the experts for the exact application required: From dual-socket boards with Intel Xeon Scalable processor, to up to six PCIe 3.0 slots and 10 Gbit/s Ethernet host ports.
The NDL-5000R systems are available in rackmount or tower housing variants with up to 72 drive bays. The basic model NDL-5724R is installed in a 4U rackmount housing with 24 LFF slots and can be equipped with the necessary interfaces as required.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
660 Millimeter (mm)
Height
178 Millimeter (mm)
Weight
25 Kilogram (kg)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
No
General
Manufacturer
NASdeluxe
Model
NDL-5724R/F
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Operating system
Open Source Operating System
No
High availability
No
Drive bays
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
SATA
SATA
Drive bays 2.5" (rear option)
2
Drive bays 3.5" (hotswap)
24
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
7
USB 3.0 Ports (front/rear/internal)
2/2/1
USB 2.0 Ports (front/rear/internal)
0/2/6
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Network
Active Directory Client
No
# networking ports
2x
Networking (type)
Gigabit Ethernet
max. number of nodes
Nodes (max.)
1
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1200W Netzteil
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
Supported protocols
Protocols supported (Block)
iSCSI
Protocols supported (File)
Apple Talk
CIFS/SMB
FTP
HTTP
NFS v3
Secure FTP
CIFS/SMB
FTP
HTTP
NFS v3
Secure FTP
File systems
File systems supported
OpenZFS
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
N/A
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
