SKU: NG-XSM4348CS

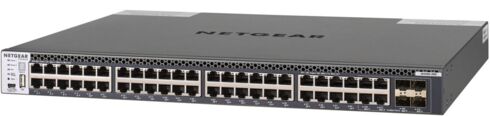

NETGEAR ProSAFE M4300-48X
Edge Series Intelligent 10 GbE 48-Port Switch
Manufacturer:
1
- 1U with redundant modular power supplies
- 48x 10GBASE-T (Fast Ethernet, 1 GbE- and 10 GbE)
- 4x SFP+ (shared; 1 GbE- and 10 GbE)
- 1G Ethernet service port for out-of-band management (OOB, RJ45)
- RS232 and mini-USB port for local management console
- USB port for local storage, logs, configuration or image files
The NETGEAR Intelligent Edge Switch solutions combine advances in hardware and software engineering: the stackable switch series provides L2/L3/L4 and IPv4/IPv6 services for SMB edges with full PoE+ and SMB core deployments. It also scores with unrivaled ease of use. It enables greater flexibility, lower complexity, and improved investment protection - at an attractive price. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications, and IP video. It is also future-proofed with support for software-defined network (SDN) and OpenFlow 1.3.
Similar products
Switches
NETGEAR ProSAFE M4300-48XF
Edge Series Intelligent 10 GbE 48-Port SFP+ Switch
To the store
Switches

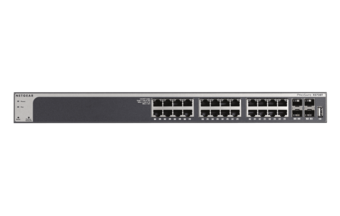

NETGEAR ProSAFE XS728T
28-Port 10 GbE Smart Managed Switch
To the store
Switches

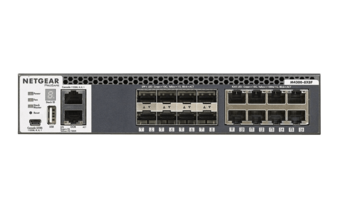

NETGEAR ProSAFE M4300-8X8F
Edge Series Intelligent 10 GbE 16-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-24X
Intelligent 10 GbE 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-24XF
Intelligent 10 GbE SFP+ 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-12X12F
Hybrid 10 GbE 24-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches

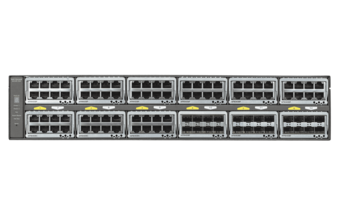

NETGEAR ProSAFE M4300-96X
Modular 96-port Edge Series Switch up to 40 GbE
To the store
Switches
NETGEAR ProSAFE M4300-24X24F
Hybrid 10 GbE 48-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches

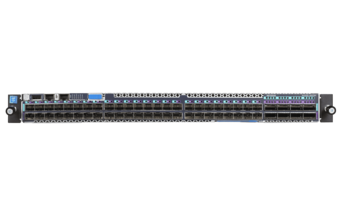

NETGEAR M4500-48XF8C
Managed 100 GbE switch for the big tasks
To the store
Switches
Mellanox MSN2010-CB2R
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2010-CB2RC
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2100-CB2F
Compact 100 GbE 1U half-width Ethernet switch
To the store
Specifications
General
Networking ports
48
Additional networking ports
4
Switch stacking
Yes
Active cooling
Yes
Plug type
RJ45; SFP+
Model
M4300-Serie
Switch port speed
48x 10G
Dimensions and Weight
Width
44 Centimeter (cm)
Depth
34.5 Centimeter (cm)
Height
4.32 Centimeter (cm)
Weight
6.55 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
50 Celsius (°C)
Operating Relative Humidity
90%
Network
Networking controller
800 MHz
Plug type
RJ45; SFP+
Networking (type)
Ethernet
Rack mount rails
Rail type
Rackmount Kit
