SKU: ZBA.T408

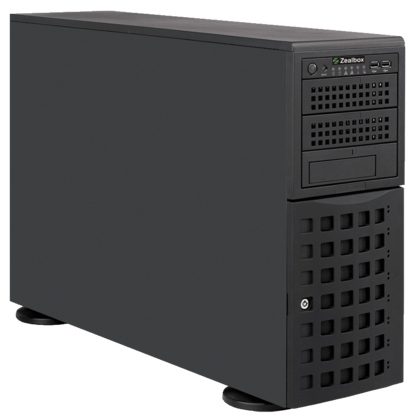

Zealbox ZBA.T408
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Manufacturer:
Zealbox
1
- Big tower appliance with eight drive bays
- Powerful equipment with scalable CPUs
- Backups of the virtual machines outside the virtualization server
- Optional advance replacement service/on-site service bookable
With the Zealbox Backup Appliance, small and medium-sized businesses (SMBs) get a high-performance, affordable and easy-to-install complete solution to backup and restore virtual machines (VMs) under VMware vSphere or Microsoft Hyper-V via Veeam Backup & Replication. With a powerful Areca RAID controller, redundant power supplies, optional iSCSI and FC HBAs, and SAS expansion port, the Zealbox Backup Appliance also offers the convenience of a conventional storage server.The Zealbox Backup Appliance is based on an open platform with powerful hardware from manufacturers such as Intel, Supermicro, Broadcom and Areca. It is expandable in capacity at any time through JBODs and can be integrated completely flexibly into any network.
Similar products
Backup Server
Zealbox ZBA.R104
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

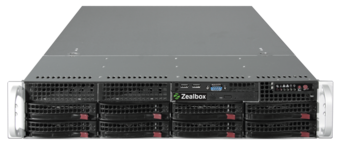

Zealbox ZBA.R208
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.R212
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

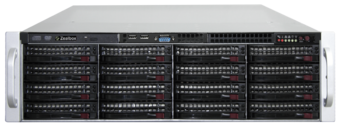

Zealbox ZBA.R316
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.R424
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

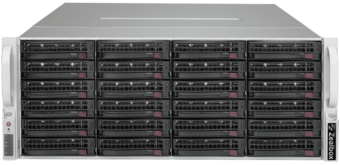

Zealbox ZBA.R436
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Specifications
Dimensions and Weight
Width
178 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
452 Millimeter (mm)
Weight
25 Kilogram (kg)
FormFactor
Tower, 4 HE Rackmount optional
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
Manufacturer
Zealbox
PCIe Generation
3.0
Model
ZBA.T408
Memory
Memory modules (type)
RDIMM
LRDIMM
DCPMM
LRDIMM
DCPMM
Memory modules (max.)
16
Memory channels per CPU
6
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Drive bays
2.5" compatible
No
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3/3
USB 3.0 Ports (front/rear/internal)
2/2/1
PCIe x8 Slots (CPU1/CPU2)
2/0
PCIe x16 Slots (CPU1/CPU2)
1/3
USB 2.0 Ports (front/rear/internal)
0/2/2
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Discrete
Backplane (Conntector)
8x SAS/SATA
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X722 + X557
Plug type
RJ45
Processor
Processor Manufacturer
Intel
Processor type
Intel® Xeon® Scalable Processors Skylake SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
Processors (max.)
2
Processor socket
LGA-3647 (Socket P)
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen optional
Power supply
installed
2
80PLUS certification
N/A
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
800W Netzteil
Other Technical Features
Drive type
Optical optional
LTO optional
RDX optional
LTO optional
RDX optional
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Chip
Mainboard
SuperMicro X11DPI-NT
Chipset
Intel® C622
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
Intel® C622
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
