SKU: ARC-8050T3S4U-24

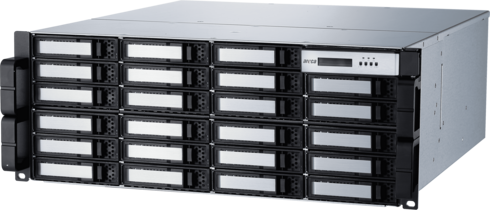

Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Manufacturer:
1
- 24-bay SAN storage for up to 9 users
- 40 Gbps Thunderbolt 3 interface
- Simultaneous 4K input/output

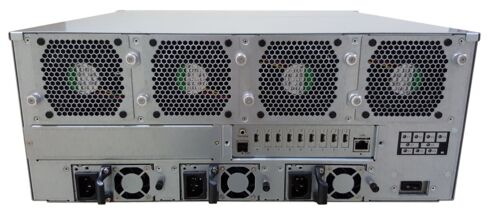

- Mac Mini slot on the back
- Simultaneous 4K input/output
- Mac Mini slot on the back
- .Slot on the back
- Provides enterprise-class data security
- Optional flash and battery backup protection (FBM/BBM) for cache
The ARC-8050T3 SAN can be deployed in both PC and Mac environments with 24 bays and up to 9 Thunderbolt3/USB-C ports. It features an integrated 1.2 GHz dual-core ROC and 4 GB ECC SDRAM memory for high-performance RAID protection. This allows the Thunderbolt3 system to simultaneously power demanding workgroups such as video editors with real-time HD and 4K streams. The XSAN network can also be expanded with a central server via the Mac Mini slot on the back.
Similar products
RAID-System
Infortrend EonStor DS 4024R2C
High-availability SAN storage for enterprise use
Show product
RAID-System
Infortrend EonStor DS 4024R2CB
High-availability SAN storage for enterprise use
Show product
RAID-System
Areca ARC-8050T3-12R
Erweiterbares Rackmount-System mit Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8042-12
Silent data protector
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Drive bays
Drive bays 3.5" (hotswap)
24
2.5" compatible
Yes
Host connectors per controller
Host-Board-Slots (per controller)
Onboard Host Interfaces (per controller)
5x 40Gbit/s Thunderbolt 3
Other Technical Features
Drives (max.)
512
RAID controller
Single
Scale-Out architecture
No
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Onboard SAS-Expansionports (per controller)
1x 12Gbit/s miniSAS HD
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
4 Gigabyte (GB)
Public Cloud Gateway
Public Cloud Gateway
No
Dimensions and Weight
FormFactor
4 HE Rackmount
General
RAID levels suppored
0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Model
ARC-8050T3 SAN
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Supported protocols
Protocols supported (File)
-
Protocols supported (Block)
Thunderbolt 3
USB 3.2 Gen. 2
USB 3.2 Gen. 2
Protocols supported (Object)
-
