SKU: ARC-1330-4I4X

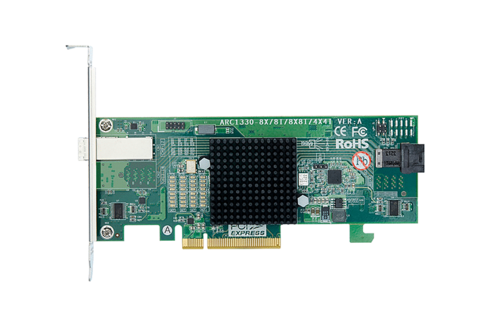

Areca ARC-1330-4i4x
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Manufacturer:
Areca
1
- Only 7.5 watts power dissipation
- PCIe 3.0 x8 lanes (x8, x4 and x1 lane width)
- Up to 48 Gbps data rate per SAS port x4
- Supports 1 internal and 1 external SAS ports (x4) or 8 SATA ports
- Compatible with SAS/SATA hard drives or SSDs and SAS components such as tape libraries, LTO drives, and RAID systems
- System status indication through HDD activity/error headers.
The slim ARC-1330 low-profile host bus adapter from Areca transports SAS data to docked DAS systems in an energy-efficient manner. It is the first choice when it comes to docking SAS components: after all, the HBA handles 12, 6 and 3 Gbit/s as well as SATA data rates of 6 and 3 Gbps (each per lane). It works via its PCI Express interface in every computer, workstation and server with Windows, Red Hat, Centos, SUSE, Ubuntu, XenServer, FreeBSD and macOS.
Through its internal and external port configurations, the ARC-1330 enables a variety of uses: For example, it controls up to 128 end devices via the SFF-8644 port via expander. This makes the host adapter ideal for external RAID storage and No-RAID enclosures alike. Thus, many applications and tiered storage solutions are only possible with it. As usual with Areca, the controllers are backwards compatible with existing and future RAID and expander solutions.
Through its internal and external port configurations, the ARC-1330 enables a variety of uses: For example, it controls up to 128 end devices via the SFF-8644 port via expander. This makes the host adapter ideal for external RAID storage and No-RAID enclosures alike. Thus, many applications and tiered storage solutions are only possible with it. As usual with Areca, the controllers are backwards compatible with existing and future RAID and expander solutions.
Similar products
HBA

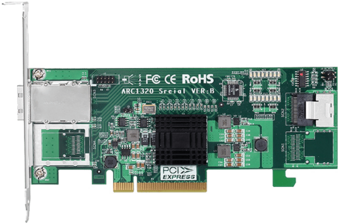

Areca ARC-1320-4i4x
Low cost HBA for JBODs and removable media
Show product
HBA

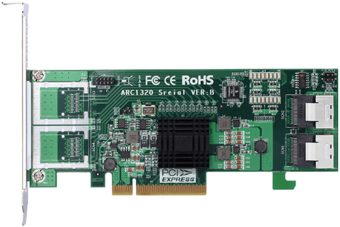

Areca ARC-1320-8i
Low cost HBA for JBODs and removable media
Show product
HBA

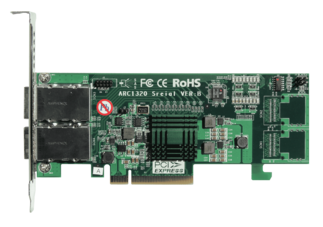

Areca ARC-1320-8x
Low cost HBA for JBODs and removable media
Show product
HBA

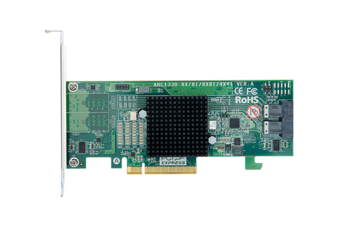

Areca ARC-1330-8i
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA

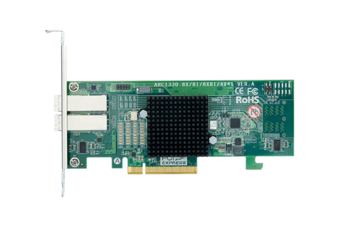

Areca ARC-1330-8x
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Broadcom/LSI SAS 9300-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

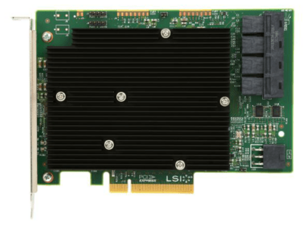

Broadcom/LSI SAS 9300-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

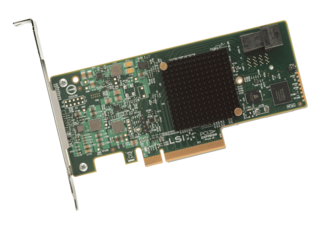

Broadcom/LSI SAS 9300-4i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

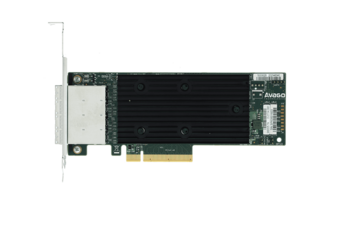

Broadcom/LSI SAS 9305-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

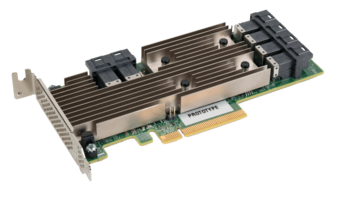

Broadcom/LSI SAS 9305-24i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI 9400-16e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

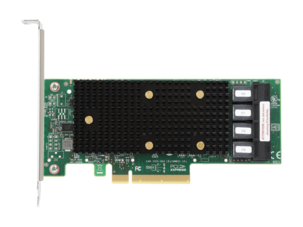

Broadcom/LSI 9400-16i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

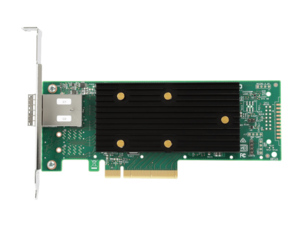

Broadcom/LSI 9400-8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

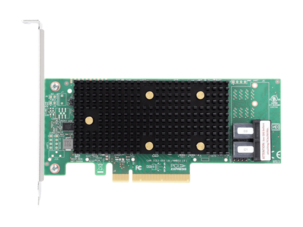

Broadcom/LSI 9400-8i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8i8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9405W-16e
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9405W-16i
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9500-16i
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8e
Tri-Mode HBAs for PCIe 4.0
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passive
PCIe Generation
3.0
Model
ARC-1330 Serie
Cache
N/A
Transferrate
12
Manufacturer
Areca
Internal connectors
1 x SFF-8643
Other Technical Features
Drives (max.)
128
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Expansion and connectivity
External connections
1x SFF-8644
Internal connectors
1 x SFF-8643
