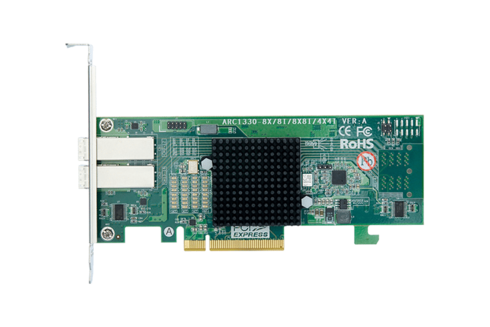

Areca ARC-1330-8x
- Only 7.5 watts power dissipation
- PCIe 3.0 x8 lanes (x8, x4 and x1 lane width)
- Up to 48 Gbps data rate per SAS port x4
- Supports 2 external SAS ports (x4) or 8 SATA ports
- Compatible with SAS/SATA hard drives or SSDs and SAS components such as tape libraries, LTO drives, and RAID systems
- System status indication through HDD activity/error headers.
The slim ARC-1330 low-profile host bus adapter from Areca transports SAS data to docked DAS systems in an energy-efficient manner. It is the first choice when it comes to docking SAS components: after all, the HBA handles 12, 6 and 3 Gbit/s as well as SATA data rates of 6 and 3 Gbit/s (each per lane). It works via its PCI Express interface in every computer, workstation and server with Windows, Red Hat, Centos, SUSE, Ubuntu, XenServer, FreeBSD and macOS.
Through its internal and external port configurations, the ARC-1330 enables a variety of uses: For example, it controls up to 128 end devices via the SFF-8644 port via expander. This makes the host adapter ideal for external RAID storage and No-RAID enclosures alike. Thus, many applications and tiered storage solutions are only possible with it. As usual with Areca, the controllers are backwards compatible with existing and future RAID and expander solutions.
