SKU: LSISAS9500-8I
Broadcom/LSI 9500-8i
Tri-Mode HBAs for PCIe 4.0
Manufacturer:
Broadcom
1
- Connects up to 1024 SAS/SATA and 32 NVMe drives
- 8 internal ports via one SFF-8654 port x8
- Low profile format for 1U/2U rackmount servers
- Uses 8 lanes of PCIe 4.0
- Drivers for Windows, VMware, Red Hat, SuSE, Ubuntu, XenServer, CentOS, Debian, Oracle, Fedora, FreeBSD
The Broadcom 9500 Series of 12 Gbps HBAs for SAS/SATA/PCIe (NVMe) Gen4 includes tri-mode storage adapters that provide server OEMs and data centers with high flexibility and performance at the lowest cost. Tri-mode SerDes technology allows them to use NVMe, SAS or SATA devices in a single drive bay. Based on Broadcom's SAS3816 and SAS3808 eight lane host PCIe-to-SAS/SATA/PCIe IOC controllers, the adapters are capable of accessing both PCIe Gen 4.0 host and PCIe Gen 4.0 storage interfaces. PCIe Gen 4.0 also guarantees high performance by allowing twice the bandwidth to be used over it, which translates into 75 percent more input/output operations (IOPS).
Similar products
HBA

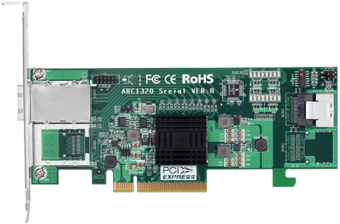

Areca ARC-1320-4i4x
Low cost HBA for JBODs and removable media
Show product
HBA

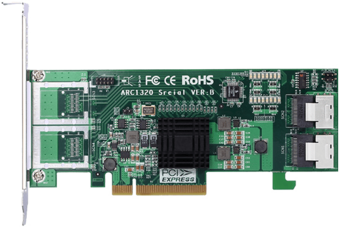

Areca ARC-1320-8i
Low cost HBA for JBODs and removable media
Show product
HBA

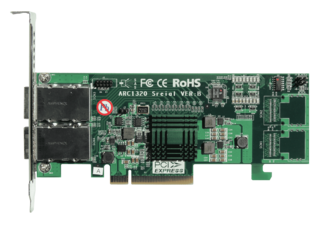

Areca ARC-1320-8x
Low cost HBA for JBODs and removable media
Show product
HBA

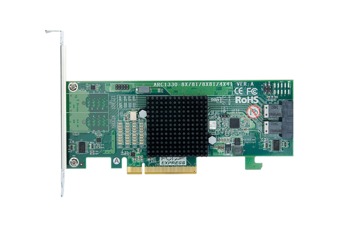

Areca ARC-1330-8i
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA

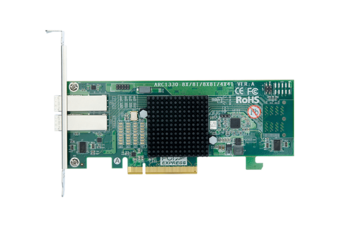

Areca ARC-1330-8x
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Broadcom/LSI SAS 9300-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

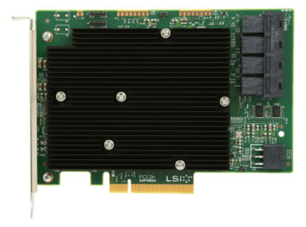

Broadcom/LSI SAS 9300-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

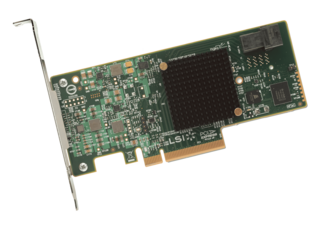

Broadcom/LSI SAS 9300-4i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

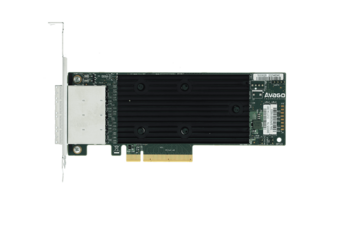

Broadcom/LSI SAS 9305-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA

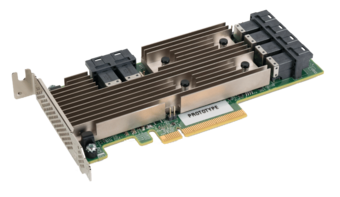

Broadcom/LSI SAS 9305-24i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI 9400-16e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

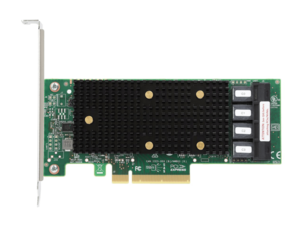

Broadcom/LSI 9400-16i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

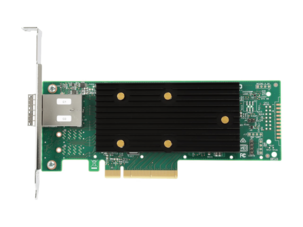

Broadcom/LSI 9400-8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

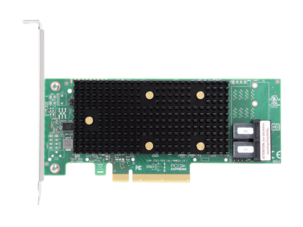

Broadcom/LSI 9400-8i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9405W-16e
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9405W-16i
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9500-16i
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8e
Tri-Mode HBAs for PCIe 4.0
Show product
Specifications
Dimensions and Weight
FormFactor
Low profile, PCIe x8
General
Active cooling
No
Manufacturer
Broadcom
PCIe Generation
4.0
Model
Broadcom SAS HBA
Network
Remote Direct Memory Access (RDMA)
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
