SKU: ARC-4038ML

Areca ARC-4038ML

Fast JBOD in a small tower chassis
Manufacturer:
Areca
1
Specifications
  • Wireless 12 Gbps SAS/SATA backplane
  • Compatible with SAS host bus adapters and SAS RAID controllers
  • Intelligent fans and buzzer alarm
  • SFF and LFF drives possible

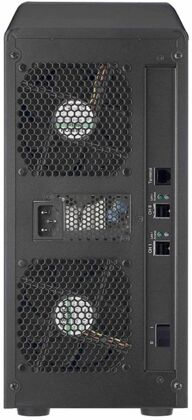

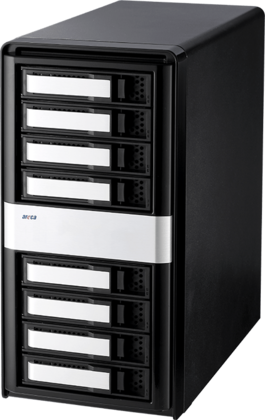

The ARC-4038ML serves as a direct attached storage enclosure with 8 LFF bays for PC and Mac. This JBOD in the form of a small tower uses two high-speed SFF-8644 connections to the HBA or RAID controller installed in the host. The high transfer rates make the ARC-4038ML excellent for audio/video applications, especially video editing on a Mac.


Similar products
Specifications
Dimensions and Weight
Width
302 Millimeter (mm)
Depth
290 Millimeter (mm)
Height
146 Millimeter (mm)
Weight
6.8 Kilogram (kg)
FormFactor
Desktop
General
Manufacturer
Areca
Model
ARC-4038 Serie
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
External connections
2x SFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Multilane
Rack mount rails
Quick release rails
No
Power supply
installed
1
Power supply
300 W
