SKU: NDL-5508T/W

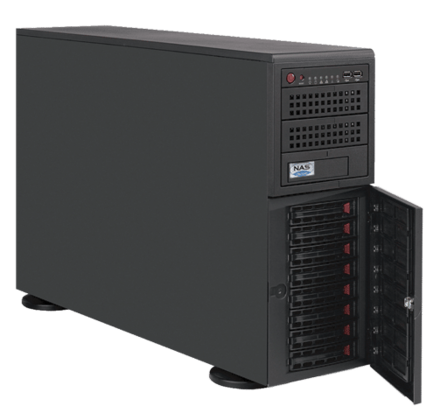

NASdeluxe NDL-5508T/W
NASdeluxe reliability with familiar Windows interior
Manufacturer:
1
- Tower enclosure with eight LFF bays
- Out-of-the-box unified storage solution
- Data deduplication
- Azure backup
- Snapshot functionality
NDL-5000R/W systems from NASdeluxe are based on Microsoft Windows Server. From this, our product developers designed dedicated file servers that are ready for optimised reliability, seamless integration and high cost-effectiveness. Among other things, Windows Server in particular is also recommended as an operating system for storage systems in Microsoft environments, as the close integration simplifies uniform administration. The industry-known strengths of the Microsoft operating system in virtualisation and containers are extended by Windows Storage Server 2019 with further improvements such as Storage Spaces Direct, Azure Backup and much more. All of these features can be put to excellent use in our NASdeluxe system from the Windows family. We have enclosure variants with up to 72 SAS/SATA hard drive bays in our range for this purpose. The basic model NDL-5708R/W in the big tower case with eight LFF bays can be equipped with LTO or RDX drives as required.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Dimensions and Weight
Width
178 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
452 Millimeter (mm)
Weight
25 Kilogram (kg)
FormFactor
Tower, 4 HE Rackmount optional
Administration
Dedicated Management Port
No
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Drive bays
2.5" compatible
No
Tape drive integration supported
Yes
Drive type supported
SAS
SATA
SATA
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
7
USB 3.0 Ports (front/rear/internal)
0/2/3
USB 2.0 Ports (front/rear/internal)
0/2/6
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Discrete
Network
Active Directory Client
No
# networking ports
2x
Networking (type)
Gigabit Ethernet
max. number of nodes
Nodes (max.)
1
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen optional
Power supply
installed
2
80PLUS certification
N/A
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
800W Netzteil
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
Supported protocols
Protocols supported (Block)
iSCSI
Fibre Channel
Fibre Channel
Protocols supported (File)
CIFS/SMB
NFS
NFS
General
Model
NDL-5508RT/W
File systems
File systems supported
NTSF ReFS
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 5, 6, 50, 60
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
