SKU: NDL-5824R/L
NASdeluxe NDL-5824R/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Manufacturer:
NASdeluxe
Discontinued
This product is currently no longer available.

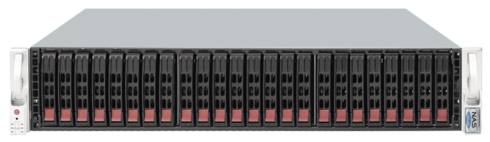

- 2U rackmount chassis with 24 SFF bays
- iSCSI/NFS failover for high availability with two systems
- Expandable with JBODs through SAS expansion port
- Modularly expandable with additional I/O cards
- Snapshot functionality
- Open-E DSS V7 software is certified for VMware vSphere 6.x and Citrix certified

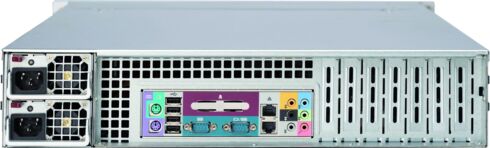

The NASdeluxe NDL-5000R/L systems are unified storage systems that can be used individually or in a cluster. They offer block-based storage via iSCSI or Fibre Channel as well as file-based storage via NFS and/or CIFS/SMB. Systems with Open-E's DSS V7 operating system can be operated as iSCSI and NFS clusters with failover, even in active-active mode. The performance of both cluster nodes is available. The NDL-5000R/L systems are available in chassis variants of up to 72 drive bays.The basic NDL-5824R/L model in a 2U rackmount chassis with 24 SFF bays can be equipped with interface cards as required.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
630 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
20 Kilogram (kg)
Administration
Dedicated Management Port
Yes
General
Manufacturer
NASdeluxe
Model
NDL-5824R/L
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Operating system
Open Source Operating System
No
High availability
No
Drive bays
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
SATA
SATA
Drive bays 2.5" (hotswap)
24
Drive bays 2.5" (rear option)
2
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Hybrid
Network
Active Directory Client
No
# networking ports
2x
Networking (type)
Gigabit Ethernet
max. number of nodes
Nodes (max.)
1
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1200W Netzteil
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
Supported protocols
Protocols supported (Block)
iSCSI
Expansion and connectivity
USB 2.0 Ports (front/rear/internal)
0/2/6
File systems
File systems supported
XFS
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
N/A
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
