/ / NASdeluxe NDL-5872R/W

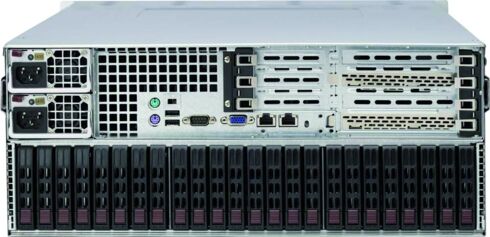

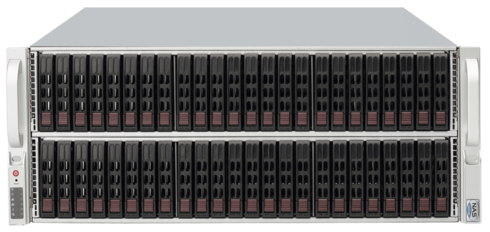

69131f3c3ee63034506855-b3d08e534bf6c052079367ffbae0969e4b38ce59_NDL_5872RW_front.png 69131f3c3f5ee023845522-01a660f4286a6a671302cf9033d446b9fc69ff9a_NDL_5872RW_rear.jpg
SKU: NDL-5872R/W

NASdeluxe NDL-5872R/W

NASdeluxe reliability with familiar Windows interior
Manufacturer:
NASdeluxe
1
Specifications
  • 4U rackmount chassis with 72 SFF bays
  • Out-of-the-box unified storage" solution
  • Data deduplication
  • Azure backup
  • Snapshot functionality

NDL-5000R/W systems from NASdeluxe are based on Windows Server from Microsoft. From this, our product developers designed dedicated file servers that are ready for optimized reliability, seamless integration and high economic efficiency. Among other things, Windows Server in particular is also recommended as an operating system for storage systems in Microsoft environments, since the tight integration simplifies uniform administration. The Microsoft operating system's industry-renowned strengths in virtualization and containers are further extended by Windows Storage Server 2019 with other enhancements such as Storage Spaces Direct, Azure Backup and much more. All of these features translate beautifully into our NASdeluxe system from the Windows family. We have enclosure variants with up to 72 SAS/SATA hard disk bays in the program for this purpose.The basic model NDL-5872R/W in a 4U rackmount enclosure with 72 SFF bays can be equipped with interface cards as required.


Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
6912fefa03b6f917165333-42f2cd2aaae581fd8142e315ebf880f2710416a8_ESGSEP_205_T_front.png
NAS-System
Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
6912fefa11dc9812360435-8fd5b11cfb61512fe2f6ee4a1cb68a65511a0512_ESGSEP_208_T_front.png
NAS-System
Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
6912fefb4edd6888225638-e2536030eb460823a26a6ebb47ec7482b28f74f1_ESGSEP_208_T_front.png
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
699 Millimeter (mm)
Height
178 Millimeter (mm)
Weight
30 Kilogram (kg)
Administration
Dedicated Management Port
Yes
General
Manufacturer
NASdeluxe
Model
NDL-5872R/W
Memory
Memory (installed)
32 Gigabyte (GB)
Memory capacity (fully populated)
2 TB
Operating system
Open Source Operating System
No
High availability
No
Drive bays
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
SATA
Drive bays 2.5" (rear option)
2
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Network
Active Directory Client
No
# networking ports
2x
Networking (type)
Gigabit Ethernet
max. number of nodes
Nodes (max.)
1
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1280W Netzteil
Other Technical Features
Scale-Out architecture
No
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
Supported protocols
Protocols supported (Block)
iSCSI
Fibre Channel
Protocols supported (File)
CIFS/SMB
NFS
Expansion and connectivity
USB 2.0 Ports (front/rear/internal)
0/2/6
File systems
File systems supported
NTSF ReFS
Mass storage controller
Mass storage controller (bandwidth)
12 Gbit/s
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 5, 6, 50, 60
Processor
Processor model
Intel® Xeon® Scalable Processors Skylake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP 2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
