SKU: SCS-ESC8000A-E13

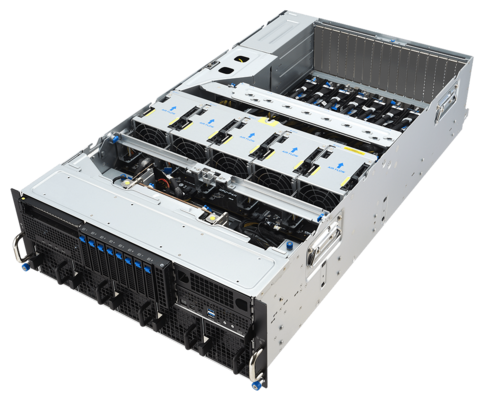

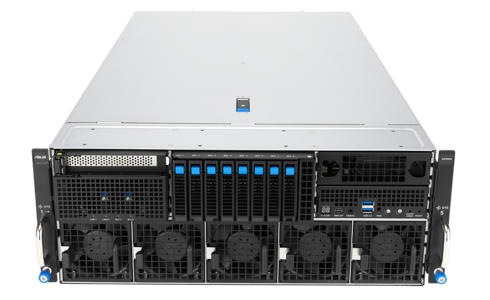

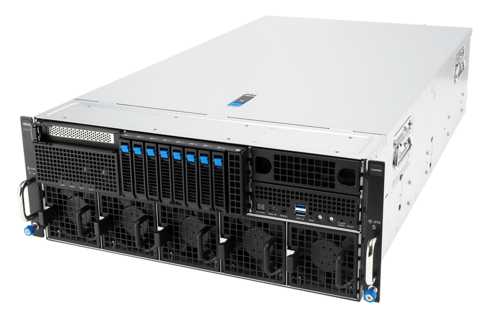

ASUS ESC8000A-E13
GPU server for up to eight dual-slot GPUs
Manufacturer:
Asus
1
- AMD EPYC 9005 processors with 192 Zen 5c cores
- 12-channel DDR5 memory and max 500 watts per socket
- Two PCIe 5.0 slots for NICs and DPUs
- Supports up to six U.2 NVMe drives
- Tool-free design from ASUS for optimized maintenance
The ESC8000A-E13 is a dual-socket server with AMD EPYC processors. It is designed for enterprise AI infrastructure with exceptional computing capabilities. It features accelerated GPU connections and high-bandwidth fabric, supports up to eight 600W dual-slot GPUs, and delivers scalable performance through configurable NVIDIA NVLinkTM 2-way or 4-way bridges.
Similar products
GPU Server
ASUS ESC8000A-E13P
4U dual-socket GPU server, 8 NVMe hot-swap drives, 8 PCIe 5.0 x16 dual-slot GPU slots and NVIDIA MGX compatible
Show product
GPU Server
ASUS ESC4000-E11
2U Dual-Socket GPU Server with 4th/5th Gen Intel Xeon CPUs, 6 NVMe bays, 4 PCIe 5.0 x16 dual-slot GPU slots
Show product
GPU Server
ASUS ESC4000A-E12
2U single-socket GPU, 6 hot-swap NVMe/SATA/U.2 drives, 8 PCIe 5.0 slots for up to 4 dual-slot GPUs and redundant 2000W PSUs
Show product
GPU Server
ASUS ESC8000-E12
4U Dual-Socket GPU Server with Intel Xeon 6 CPUs, 8 NVMe drives and 8 PCIe 5.0 x16 dual-slot GPU slots
Show product
Specifications
Dimensions and Weight
Width
439.5 Millimeter (mm)
Depth
800 Millimeter (mm)
Height
175 Millimeter (mm)
Weight
45 Kilogram (kg)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
Manufacturer
Asus
PCIe Generation
5.0
Model
ESC8000A-E13
Memory
Memory modules (type)
RDIMM
LRDIMM
LRDIMM
Memory modules (max.)
24
Memory channels per CPU
12
Memory capacity (fully populated)
3TB
Drive bays
Drive bays 2.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
11
USB 3.0 Ports (front/rear/internal)
2/1/0
PCIe x8 Slots (CPU1/CPU2)
2
PCIe x16 Slots (CPU1/CPU2)
9
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (Type)
Hybridunterstützung für NVMe
GPU
GPUs (max.)
8
Processor
Processor Manufacturer
AMD
Processor type
AMD EPYC™ 9004 (Genoa) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
Processors (max.)
2
Processor socket
LGA 6096
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
4
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
3200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Graphics
Graphics (type)
Aspeed AST2600
