SKU: SCS-ESC8000A-E13P

ASUS ESC8000A-E13P

4U dual-socket GPU server, 8 NVMe hot-swap drives, 8 PCIe 5.0 x16 dual-slot GPU slots and NVIDIA MGX compatible
Manufacturer:
Asus
1
Specifications
  • Dual-socket AMD EPYC 9005 processors (SP5, up to 500W TDP, 192 Zen 5c cores)
  • 24 DDR5 slots (up to 6TB, 6400 MT/s, 12 channels per CPU)
  • 8x 2.5" NVMe hot-swap + 2x M.2 PCIe 5.0 x4
  • 8x PCIe 5.0 x16 dual-slot GPUs + 5x PCIe 5.0 x16 (NIC/Storage) + 1x PCIe 5.0 x8
  • Dual 10GbE (Intel X710-AT2) + dedicated Mgmt LAN (AST2600 BMC)
  • 3+1 redundant 3200W 80PLUS Titanium power supplies


This ASUS server targets extreme GPU workloads in AI training/inference, High Performance Computing (HPC) and enterprise AI applications. Primary markets include generative AI, Large Language Models (LLM), scientific simulations and data-intensive analytics environments. The GPU-optimized design supports up to eight dual-slot GPUs (e.g. NVIDIA H200/H100/RTX PRO 6000 Blackwell) with PCIe 5.0 x16 connectivity and optional NVLink bridge support in NVIDIA MGX architecture. Storage includes eight 2.5" NVMe hot-swap bays plus two M.2 PCIe 5.0 slots. Networking ranges from dual 10GbE (Intel X710-AT2) to dedicated 400GbE PCIe cards, complemented by ASMB11-iKVM remote management. Cooling with 5 system fans is designed for dual EPYC 9005 (up to 500W TDP) and GPU TDP up to 600W.

Similar products
6973637c0a512571381215-6e9735a15b56e8a8c47708e7669f605866981dda_asusESC8000A_E13front.png
GPU Server

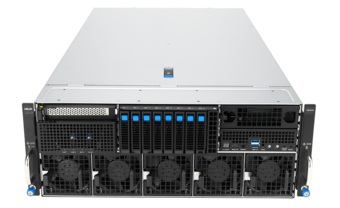

ASUS ESC8000A-E13
GPU server for up to eight dual-slot GPUs
Show product
699458e682f26095786134-3b8634f113687c8f7ffe7d8486f8deb647a7c22f_ASUS_ESC4000_E11_front.png
GPU Server
ASUS ESC4000-E11
2U Dual-Socket GPU Server with 4th/5th Gen Intel Xeon CPUs, 6 NVMe bays, 4 PCIe 5.0 x16 dual-slot GPU slots
Show product
6995560608541168609858-95ad2247cc34cb955040d70d82e9e5ae5dc3a25b_ASUS_ESC4000A_E12_front.png
GPU Server
ASUS ESC4000A-E12
2U single-socket GPU, 6 hot-swap NVMe/SATA/U.2 drives, 8 PCIe 5.0 slots for up to 4 dual-slot GPUs and redundant 2000W PSUs
Show product
699458e68e661973469803-13c5f211ac9c7d4bb8bb817dccdf445f6263a08c_ASUS_ESC8000_E12_front.png
GPU Server
ASUS ESC8000-E12
4U Dual-Socket GPU Server with Intel Xeon 6 CPUs, 8 NVMe drives and 8 PCIe 5.0 x16 dual-slot GPU slots
Show product
Specifications
Dimensions and Weight
Width
439.5 Millimeter (mm)
Depth
800 Millimeter (mm)
Height
175 Millimeter (mm)
Weight
45 Kilogram (kg)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
Manufacturer
Asus
PCIe Generation
5.0
Model
ESC8000A-E13P
Memory
Memory modules (type)
RDIMM
LRDIMM
Memory modules (max.)
24
Memory channels per CPU
12
Memory capacity (fully populated)
3TB
Drive bays
Drive bays 2.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
14
USB 3.0 Ports (front/rear/internal)
2/1/0
PCIe x8 Slots (CPU1/CPU2)
1
PCIe x16 Slots (CPU1/CPU2)
13
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (Type)
Hybridunterstützung für NVMe
GPU
GPUs (max.)
8
Network
# networking ports
2x
Networking (type)
10 Gbit/s Ethernet
Networking controller
Intel X710-AT2
Plug type
RJ45
Processor
Processor Manufacturer
AMD
Processor type
AMD EPYC™ 9004 (Genoa) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
Processors (max.)
2
Processor socket
LGA 6096
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
4
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
3200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Graphics
Graphics (type)
Aspeed AST2600
