SKU: SCS-ESC4000A-E122K

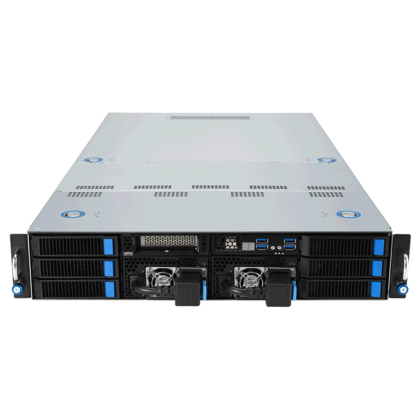

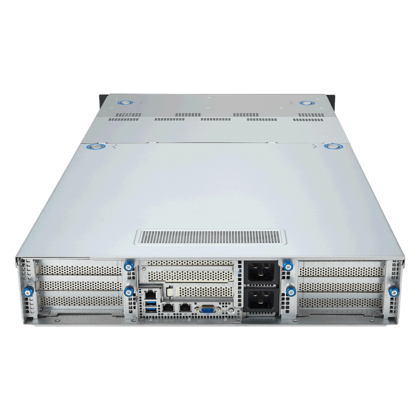

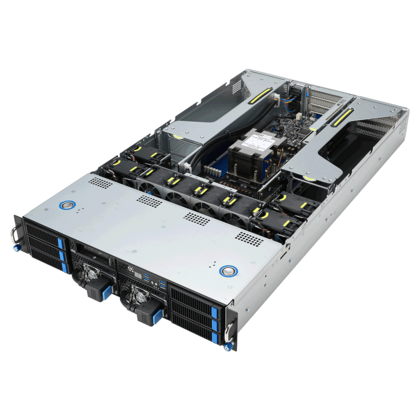

ASUS ESC4000A-E12
2U single-socket GPU, 6 hot-swap NVMe/SATA/U.2 drives, 8 PCIe 5.0 slots for up to 4 dual-slot GPUs and redundant 2000W PSUs
Manufacturer:
Asus
1
- owered by single-socket AMD EPYC 9004/9005 processors (SP5, up to 400W TDP, 96 Zen4/5 cores)
- Support for up to 12 DDR5 DIMMs (up to 3TB, 4800 MHz)
- Up to 6 hot-swap drives (2x 2.5" + 4x 3.5" SATA/U.2/NVMe)
- 8 PCIe 5.0 slots (4x x16 + 4x x8) + 1x OCP 3.0 PCIe 5.0 x16 for 4 dual-slot GPUs
- Dual 1GbE + management LAN (ASMB11-iKVM) + NVIDIA BlueField DPU-ready
- Redundant 1+1 2000W 80PLUS Platinum/Titanium power supplies
This ASUS server targets intensive GPU workloads in AI training/inference, High Performance Computing (HPC), research and data analytics. Primary markets include demanding AI infrastructure requiring maximum compute with scalable GPU connectivity. The storage and expansion design is GPU-optimized, featuring six front hot-swap drives (2x 2.5" SATA/U.2 + 4x 3.5" SATA/U.2) and eight PCIe 5.0 slots (4x x16 + 4x x8 in x16 size) for up to four dual-slot GPUs with NVIDIA NVLink bridge support. Networking includes dual 1GbE Intel I350 ports, dedicated management LAN and OCP 3.0. Cooling uses 10 high-performance fans with liquid cooling support, designed for up to 400W TDP processors and GPU workloads.
Similar products
GPU Server

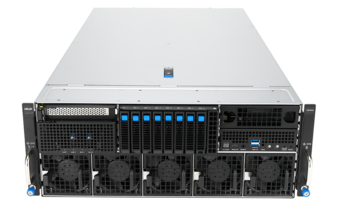

ASUS ESC8000A-E13
GPU server for up to eight dual-slot GPUs
Show product
GPU Server
ASUS ESC8000A-E13P
4U dual-socket GPU server, 8 NVMe hot-swap drives, 8 PCIe 5.0 x16 dual-slot GPU slots and NVIDIA MGX compatible
Show product
GPU Server
ASUS ESC4000-E11
2U Dual-Socket GPU Server with 4th/5th Gen Intel Xeon CPUs, 6 NVMe bays, 4 PCIe 5.0 x16 dual-slot GPU slots
Show product
GPU Server
ASUS ESC8000-E12
4U Dual-Socket GPU Server with Intel Xeon 6 CPUs, 8 NVMe drives and 8 PCIe 5.0 x16 dual-slot GPU slots
Show product
Specifications
Dimensions and Weight
Width
439.5 Millimeter (mm)
Depth
800 Millimeter (mm)
Height
88.9 Millimeter (mm)
Weight
24 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
Manufacturer
Asus
Model
ESC4000A-E12
Memory
Memory modules (type)
RDIMM
LRDIMM
LRDIMM
Memory modules (max.)
12
Memory channels per CPU
12
Memory capacity (fully populated)
3 TB
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
6
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
12
USB 3.0 Ports (front/rear/internal)
4/2/0
PCIe x8 Slots (CPU1/CPU2)
10
PCIe x16 Slots (CPU1/CPU2)
6
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (Type)
Hybridunterstützung für NVMe
GPU
GPUs (max.)
8
Network
# networking ports
2x
Networking (type)
Gigabit Ethernet
Networking controller
Intel® i350AM2
Plug type
RJ45
Processor
Processor Manufacturer
AMD
Processor type
AMD EPYC™ 9004 (Genoa) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
Processors (max.)
1
Processor socket
LGA 6096
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
2600W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Graphics
Graphics (type)
Aspeed AST2600
