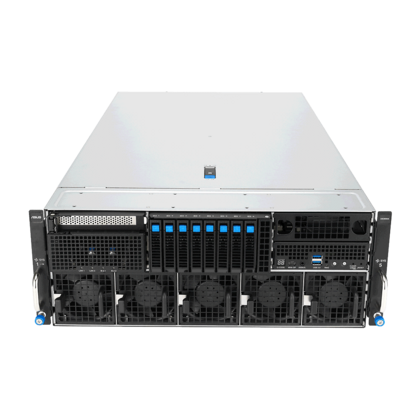

699458e68e661973469803-13c5f211ac9c7d4bb8bb817dccdf445f6263a08c_ASUS_ESC8000_E12_front.png

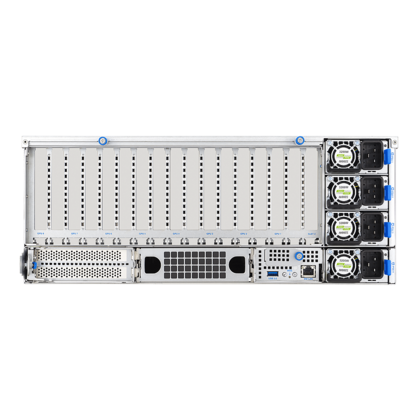

699458e68ed9e264454716-68c0188100f29da1a8febb2a06d932cf8e0a85ec_ASUS_ESC8000_E12_back.png

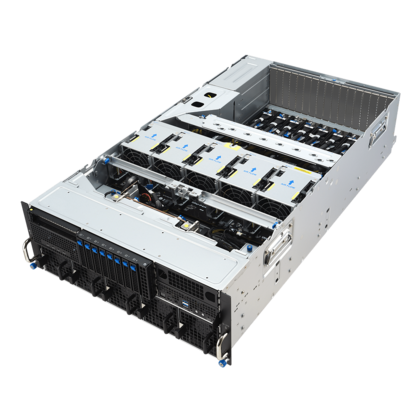

699458e68f303099985450-d774d68f004cf91b5db4677e7d0ca261665f70ef_ASUS_ESC8000_E12_sideopen.png

SKU: SCS-ESC8000-E12

ASUS ESC8000-E12

4U Dual-Socket GPU Server with Intel Xeon 6 CPUs, 8 NVMe drives and 8 PCIe 5.0 x16 dual-slot GPU slots

Manufacturer:

Specifications

Powered by Dual-Socket Intel® Xeon® 6 Scalable Processors (LGA 4710, up to 350W TDP)
32 DDR5 RDIMM slots (16 per CPU, up to 4TB, 6400 MT/s)
GPU-optimized design with 8 PCIe 5.0 x16 dual-slot GPUs (up to 600W) and NVLink support
Up to 8 NVMe hot-swap drives (2x M.2 PCIe 5.0 x4 + backplane)
Expansion with 8x PCIe 5.0 x16 (FH/FL), 1x PCIe 5.0 x16 (FH/HL), 2x PCIe 5.0 x8
3+1 redundant 3200W 80PLUS Titanium power supplies

This ASUS server targets performance-intensive applications where high computing power, large data volumes, and scalable infrastructure are key. Primary markets include High Performance Computing (HPC), AI training and inferencing, terabyte-scale data warehouses, and demanding virtualization environments. The storage and expansion design emphasizes scalability with up to eight 2.5" hot-swap NVMe drives and eight PCIe 5.0 x16 slots for dual-slot GPUs (up to 600W TDP per GPU) supporting NVIDIA® NVLink™ 2-Way/4-Way bridges. Networking includes a dedicated management port and optional OCP 3.0 support. Cooling features 5 system fans and 5 dedicated GPU fans with ASUS Thermal Radar 2.0, optimized for up to 350W TDP processors and extreme GPU workloads.
