SKU: BRO-100G-1QSFP28
Broadcom BRO-100G-1QSFP28
100 Gbps Ethernet performance
Manufacturer:
Broadcom
Discontinued
This product is currently no longer available.
- Norm-compatible 100G PCIe 4.0 Ethernet controller with line-rate and full-duplex throughput
- Single port with 100/50/40/25/10G, Dual with 50/40/25/10G and Quad with 25/10G
- NIC partitioning to support 16 physical Functions (PFs)
- TruFlow Engine for intelligent flow processing to increase server VM density
- BroadSAFE technology for advanced platform security
- Supports RoCE, SDN, NFV and virtualization

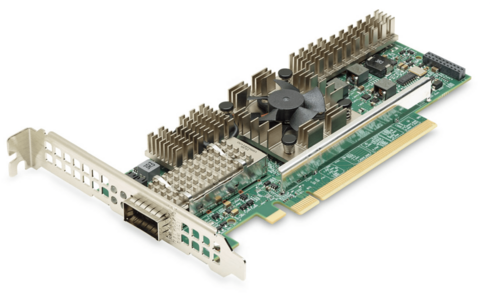

The Broadcom BCM957454A4540C is a single port 100 Gbps adapter that supports both QSFP28/QSFP+ optical modules and direct connect electrical cables. The Eterhent adapter uses Broadcom's BCM57454 100 Gbps Ethernet LAN controller, which is specifically targeted at public, private cloud, and especially Big Data and multitenant applications. It supports single-port Ethernet speeds of 1/10/25/40/50/100 Gbps, dual-port 1/10/25/50 Gbps and quad-port 1/10/25 Gbps. The device includes a FalconCore that provides a 4-lane multi-rate serDes (MRS) transceiver. Its focus is on high performance, low latency, and value-added features for end-to-end solutions.
