SKU: IFT-JB390R

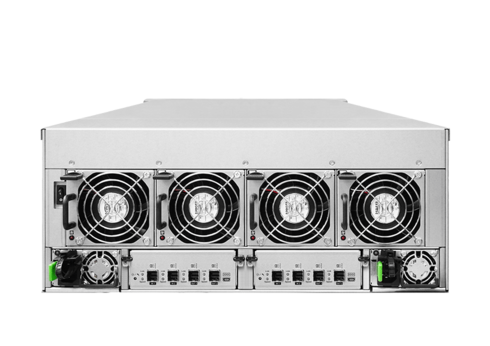

Infortrend JB 390R
Additional server capacities with Infortrend JBODs
Manufacturer:
Infortrend
1
- For 90 drives on 4U
- 12 Gbit/s mini SAS HD (SFF-8644) x 4 per controller
- Supports SFF/LFF formats
- Dual-redundant controller
- Up to 224 data carriers
JBODs from the JB 300 family, with their 12 Gbps drive interface, offer harmonious interaction with RAID controllers and host bus adapters. They deliver additional server storage capacity wherever it is needed. Depending on the budget, they are available with a single or dual controller. They are powered by their redundant 80-PLUS power supply unit, which is equipped with reactive cooling to reduce noise levels.
Similar products
JBOD
Areca ARC-4038-12
High-availability SAN storage for enterprise use
Show product
JBOD
Areca ARC-4038-8
Fast JBOD in a small tower chassis
Show product
JBOD
Infortrend JB 3024RB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Western Digital Ultrastar Data102 JBOD
High density flexibility - easily maintained
Show product
JBOD
Infortrend JB 3024SB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Areca ARC-4038ML
Fast JBOD in a small tower chassis
Show product
Specifications
Dimensions and Weight
Width
435 Millimeter (mm)
Depth
966 Millimeter (mm)
Height
176 Millimeter (mm)
Weight
31 Kilogram (kg)
FormFactor
4 HE Rackmount
General
Manufacturer
Infortrend
Model
JB 390R
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
90
Expansion and connectivity
External connections
8x SFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Power supply
installed
2
80PLUS certification
Platinum
