SKU: M-MSN2010-CB2R

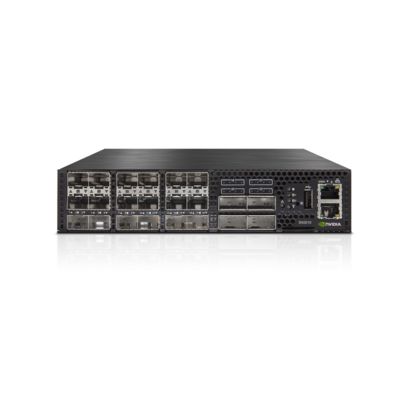

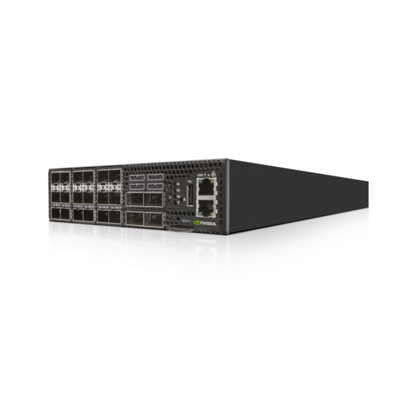

Mellanox MSN2010-CB2R
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
Manufacturer:
1
- 1U (short depth) Spectrum-based 25GbE/100GbE switch
- Mellanox Onyx
- 18 ports with SFP28 and 4 ports with QSFP28
- Up to 1.7 Tbps
- Redundant power supplies
- C2P airflow
Mellanox's MSN2010-CB2R 10/25 GbE and 100 GbE open Ethernet switch is a flexible top-of-rack (ToR) solution. It offers 18 SFP28 ports and 4 splittable QSFP28 ports (RoHS6) and is suitable with 10/25 GbE and 100GbE for hyperconverged deployment as well as for ESF (Ethernet Storage Fabrics). All Mellanox Spectrum-based switches feature low latency for all packet sizes, low power consumption and are ONIE-bootable. They feature reliable implementation of data, control and management planes. Their compact form factor allows either a single switch to be installed or two switches to be combined side-by-side in a single 1U space of a 19-inch rack.
Similar products
Switches
NETGEAR ProSAFE M4300-48XF
Edge Series Intelligent 10 GbE 48-Port SFP+ Switch
To the store
Switches
NETGEAR ProSAFE XS728T
28-Port 10 GbE Smart Managed Switch
To the store
Switches
NETGEAR ProSAFE M4300-8X8F
Edge Series Intelligent 10 GbE 16-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-24X
Intelligent 10 GbE 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-24XF
Intelligent 10 GbE SFP+ 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-12X12F
Hybrid 10 GbE 24-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR ProSAFE M4300-48X
Edge Series Intelligent 10 GbE 48-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-96X
Modular 96-port Edge Series Switch up to 40 GbE
To the store
Switches
NETGEAR ProSAFE M4300-24X24F
Hybrid 10 GbE 48-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR M4500-48XF8C
Managed 100 GbE switch for the big tasks
To the store
Switches
Mellanox MSN2010-CB2RC
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2100-CB2F
Compact 100 GbE 1U half-width Ethernet switch
To the store
Specifications
General
Networking ports
22
Switch stacking
No
Active cooling
Yes
Plug type
QSFP28; SFP28
Model
MSN2010 Series Ethernet Switches
Switch port speed
4x 100G
18x 25G
18x 25G
Dimensions and Weight
Width
20 Centimeter (cm)
Depth
50.8 Centimeter (cm)
Height
4.38 Centimeter (cm)
Weight
4.5 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
85%
Network
Networking controller
Intel x86 2.40GHz Quad Core, Mellanox Spectrum
Plug type
QSFP28; SFP28
Networking (type)
Ethernet
Rack mount rails
Rail type
Optional
