SKU: M-MSN2100-CB2FO

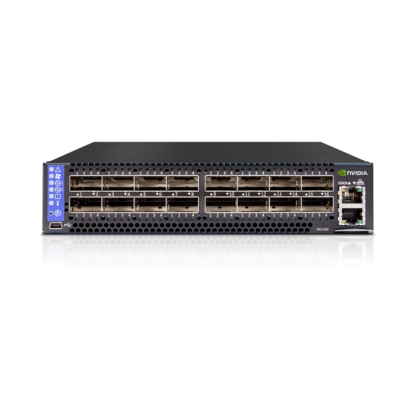

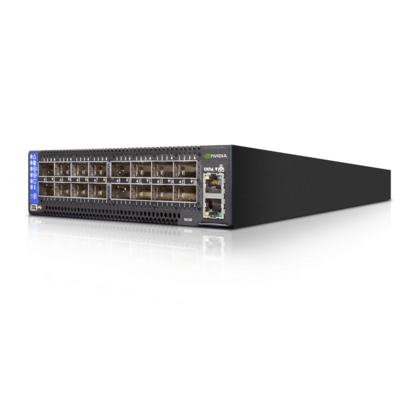

Mellanox MSN2100-CB2FO
Compact 100 GbE 1U half-width Ethernet switch
Manufacturer:
Discontinued
Dieses Produkt ist aktuell nicht mehr verfügbar.
- 1U (short depth) Spectrum 100GbE switch
- 16 QSFP28 ports
- ONIE/Bare Metal
- Up to 3.2 Tbit/s
- Redundant power supplies
- P2C airflow
The Mellanox MSN2100-CB2FO 100GbE open Ethernet switch is an ideal spine and flexible top-of-rack (ToR) solution. It provides a high-density side-by-side switching solution with up to 128 ports in 1U to meet the needs of today's database, storage and data center environments. Its flexibility, with port speeds ranging from 10 to 100 Gbps per port, enables full rack connectivity at any speed. Powered by the Mellanox Spectrum ASIC, the SN2100 series features 16 ports of 100 GbE and delivers 3.2 Tbps throughput with a processing capacity of 2.38 billion packets per second (Bpps).
Similar products
Switches
NETGEAR ProSAFE M4300-48XF
Edge Series Intelligent 10 GbE 48-Port SFP+ Switch
To the store
Switches
NETGEAR ProSAFE XS728T
28-Port 10 GbE Smart Managed Switch
To the store
Switches
NETGEAR ProSAFE M4300-8X8F
Edge Series Intelligent 10 GbE 16-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-24X
Intelligent 10 GbE 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-24XF
Intelligent 10 GbE SFP+ 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-12X12F
Hybrid 10 GbE 24-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR ProSAFE M4300-48X
Edge Series Intelligent 10 GbE 48-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-96X
Modular 96-port Edge Series Switch up to 40 GbE
To the store
Switches
NETGEAR ProSAFE M4300-24X24F
Hybrid 10 GbE 48-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR M4500-48XF8C
Managed 100 GbE switch for the big tasks
To the store
Switches
Mellanox MSN2010-CB2R
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2010-CB2RC
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2100-CB2F
Compact 100 GbE 1U half-width Ethernet switch
To the store
Specifications
General
Networking ports
16
Switch stacking
No
Active cooling
Yes
Plug type
QSFP28
Model
MSN2100 Series Ethernet Switches
Switch port speed
16x 100G
Dimensions and Weight
Width
20 Centimeter (cm)
Depth
50.8 Centimeter (cm)
Height
4.38 Centimeter (cm)
Weight
4.54 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
85%
Network
Networking controller
Intel x86 2.40GHz Quad Core, Mellanox Spectrum
Plug type
QSFP28
Networking (type)
Ethernet
Rack mount rails
Rail type
Optional
