SKU: NG-CSM4532
NETGEAR NG-CSM4532
Managed 32x 100 GbE switch for the big jobs
Manufacturer:
Discontinued
Dieses Produkt ist aktuell nicht mehr verfügbar.

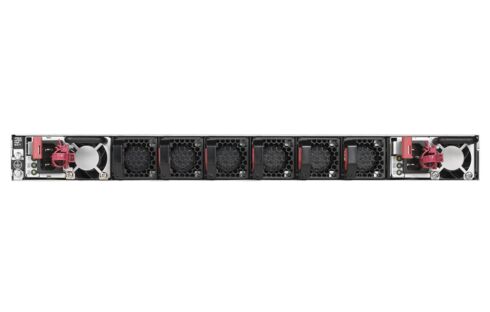

- 1U with redundant power supplies and fans
- 32x 100 Gbps QSFP28
- 1G Ethernet service port for out-of-band management (OOB, RJ45)
- RS232 and mini-USB port for local management console
- USB port for local storage, logs, configuration or image files
With an increasing number of AV streams over Ethernet - for example, when expanding with additional video workstations - a faster Ethernet infrastructure is inevitably required. NETGEAR has specifically developed the M4500-48XF8C and M4500-32C for this purpose, which represent a new class of switches: The M4500-32C, for example, is an AV over IP-capable 100G Ethernet switch that combines the configurability of an AV matrix switch with the performance and scalability possible over Ethernet (SDVoE). With its 32 100G ports, it can power hundreds of AV over IP endpoints without bottlenecking.
Similar products
Switches
NETGEAR ProSAFE M4300-48XF
Edge Series Intelligent 10 GbE 48-Port SFP+ Switch
To the store
Switches
NETGEAR ProSAFE XS728T
28-Port 10 GbE Smart Managed Switch
To the store
Switches
NETGEAR ProSAFE M4300-8X8F
Edge Series Intelligent 10 GbE 16-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-24X
Intelligent 10 GbE 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-24XF
Intelligent 10 GbE SFP+ 24-Port Edge Series Switch
To the store
Switches
NETGEAR ProSAFE M4300-12X12F
Hybrid 10 GbE 24-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR ProSAFE M4300-48X
Edge Series Intelligent 10 GbE 48-Port Switch
To the store
Switches
NETGEAR ProSAFE M4300-96X
Modular 96-port Edge Series Switch up to 40 GbE
To the store
Switches
NETGEAR ProSAFE M4300-24X24F
Hybrid 10 GbE 48-Port Edge Series Switch with SFP+ and RJ-45
To the store
Switches
NETGEAR M4500-48XF8C
Managed 100 GbE switch for the big tasks
To the store
Switches
Mellanox MSN2010-CB2R
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2010-CB2RC
Compact 10/25 and 100 GbE Ethernet switch for hyperconverged infrastructures
To the store
Switches
Mellanox MSN2100-CB2F
Compact 100 GbE 1U half-width Ethernet switch
To the store
Specifications
General
Networking ports
32
Switch stacking
No
Active cooling
Yes
Plug type
QSFP+; SFP28
Model
M4500-Serie
Switch port speed
32x 100G
Dimensions and Weight
Width
44 Centimeter (cm)
Depth
50.8 Centimeter (cm)
Height
4.32 Centimeter (cm)
Weight
9.78 Kilogram (kg)
Administration
Dedicated Management Port
Yes
Serial port
Yes
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
50 Celsius (°C)
Operating Relative Humidity
90%
Network
Networking controller
Intel Atom C3558
Plug type
QSFP28
Networking (type)
Ethernet
Rack mount rails
Rail type
Rackmountschienen; Montagewinkel
