SKU: RDL-JS12S12-R2
RAIDdeluxe RDL-JS12S12-R2
Reliable JBODs for affordable expansion
Manufacturer:
RAIDdeluxe
1
- Supports 12 Gbps SAS and 6 Gbps SAS/SATA disks simultaneously (MUX boards required for dual controller)
- Single or dual 12 Gbps SAS JBOD controller module

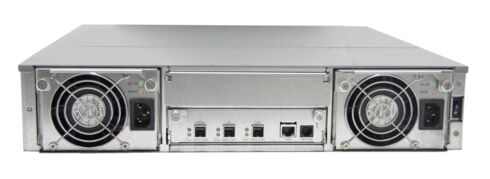

- Each controller module with two miniSAS HD x4 connectors
- Modular design of JBOD controllers, Power supplies and cooling system
- High-efficiency, redundant hot-swap power supplies

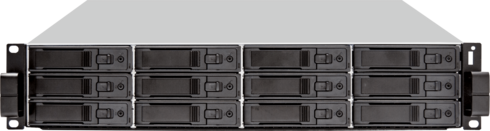

RAIDdeluxe JBODs with single (JS) or dual (JD) controllers offer a cost-effective way to provide storage capacity for RAID systems and RAID controllers. Their 12 Gbps end-to-end architecture offers excellent host performance and increased system efficiency - especially with fast 12 Gbps SAS SSDs. The wireless design ensures high signal stability and the rugged connectors provide maximum signal integrity. RDL-JS12S12-R2 JBODs have 12 SFF/LFF bays built-in and occupy 2U in the rack.
Similar products
JBOD
Areca ARC-4038-12
High-availability SAN storage for enterprise use
Show product
JBOD
Areca ARC-4038-8
Fast JBOD in a small tower chassis
Show product
JBOD
Infortrend JB 3024RB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Western Digital Ultrastar Data102 JBOD
High density flexibility - easily maintained
Show product
JBOD
Infortrend JB 3024SB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Areca ARC-4038ML
Fast JBOD in a small tower chassis
Show product
Specifications
Dimensions and Weight
FormFactor
2 HE Rackmount
General
Manufacturer
RAIDdeluxe
Model
RAIDdeluxe C-Serie
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
12
Expansion and connectivity
External connections
3x SFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Rack mount rails
Quick release rails
No
Power supply
installed
2
