SKU: Z70-08T

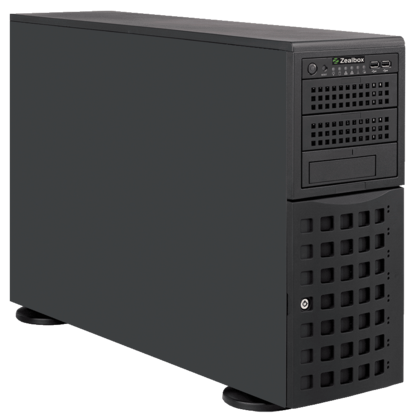

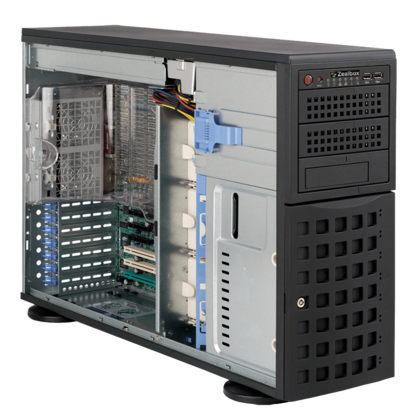

Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Manufacturer:
1
- Big tower chassis with 8 LFF drive bays
- Open platform with powerful hardware
- Performant virtualization platform
- Failsafe cooling concept
- Excellent expandability
Zealbox Z70 form an open hardware platform that can be installed in different housing variants depending on the performance and interface requirements of the customer. However, the Z70 servers have one thing in common: a single- or dual-socket boards based on Intel. In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no more performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting, or even as high-availability storage.In the various housing variants from two to four height units, our Z70 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z70-08T has a big tower chassis with 8 LFF drive bays, which can also be used horizontally as a 4U rackmount. Additional interfaces, controllers or other options will be added as needed. Moreover, we do our best to realize special requests as well.
Similar products
Application Server
Zealbox Z70-08R2
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
To the store
Application Server

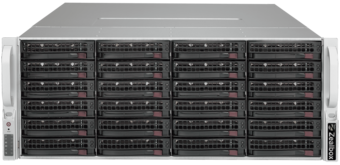

Zealbox Z70-36R4
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z70-16R3
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-08T
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
To the store
Application Server
Zealbox Z50.11-08R2
Individual and customised enterprise-class servers
To the store
Application Server
Zealbox Z50.18-08T
Individual and customized enterprise-class servers with Intel CPUs
To the store
Application Server
Zealbox Z50.12-12R2
Individual and customised enterprise-class servers
To the store
Specifications
Memory
Memory modules (max.)
16
Memory modules (type)
DCPMM
LRDIMM
RDIMM
LRDIMM
RDIMM
Memory channels per CPU
8
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Drive bays
Drive bays 3.5" (hotswap)
8
2.5" compatible
Yes
Processor
Processors (max.)
2
Processor Manufacturer
Intel
Processor socket
LGA-4189 (Socket P+)
Processor type
3rd Generation Intel® Xeon® Scalable Processors Ice Lake SP
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
920W Netzteil
Dimensions and Weight
Width
178 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
452 Millimeter (mm)
Weight
25 Kilogram (kg)
FormFactor
Tower/ 4 HE Rackmount optional
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
Marketing
Exclusive
Yes
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen optional
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
General
PCIe Generation
4.0
Model
Zealbox Z70-08T
Chip
Mainboard
SuperMicro X12DPI-NT6
Chipset
Intel® C621A
Expansion and connectivity
PCIe x8 Slots (CPU1/CPU2)
1/1
PCIe x16 Slots (CPU1/CPU2)
2/2
PCIe Slots total (CPU1/CPU2)
3/3
USB 3.0 Ports (front/rear/internal)
2/4/1
USB 2.0 Ports (front/rear/internal)
0/0/2
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
SATA 6Gbit/s
SATA 6Gbit/s
Backplane (Type)
Discrete
Backplane (Conntector)
8x SAS/SATA
Graphics
Graphics (type)
Aspeed AST2600
Mass storage controller
Mass storage controller (type)
Intel® C621A
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
Networking controller
Intel® X550
Plug type
RJ45
Networking (type)
10 Gigabit Ethernet
Software
Operating Systems (certified)
rehl_8_2
rehl_9_0
vmware_vsphere_6_7_U3
vmware_vsphere_7_0_U2
vmware_vsphere_8_0
Windows Server 2022
Windows Server 2019
rehl_9_0
vmware_vsphere_6_7_U3
vmware_vsphere_7_0_U2
vmware_vsphere_8_0
Windows Server 2022
Windows Server 2019
Other Technical Features
Drive type
RDX optional
Optical optional
LTO optional
Optical optional
LTO optional
