SKU: Z70-16R3
Zealbox Z70-16R3
Individual and customised enterprise-class servers
Manufacturer:
Zealbox
1

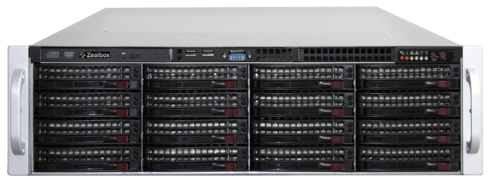

- 3U rackmount chassis with 16 LFF bays
- Open platform with powerful hardware
- Performant virtualization platform
- Up to four fast NVMe drives
- Failsafe cooling concept
- Excellent expandability

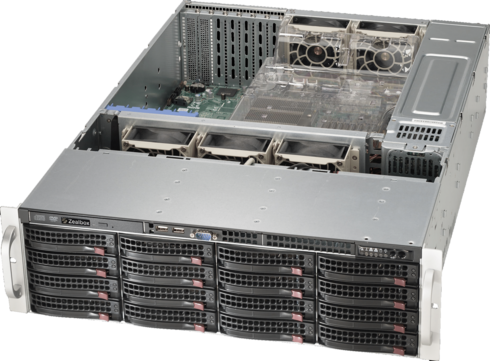

Zealbox Z70 form an open hardware platform that can be installed in different housing variants depending on the performance and interface requirements of the customer. However, the Z70 servers have one thing in common: a single- or dual-socket boards based on Intel. In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no more performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting, or even as high-availability storage.In the various housing variants from two to four height units, our Z70 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z70-16R3 has a 3U rackmount chassis with 16 LFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.
Similar products
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server
Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08T
Individual and customized enterprise-class servers with AMD CPUs
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
132 Millimeter (mm)
Weight
23 Kilogram (kg)
FormFactor
3 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
Manufacturer
Zealbox
PCIe Generation
4.0
Model
Zealbox Z70-16R3
Memory
Memory modules (type)
RDIMM
LRDIMM
DCPMM
LRDIMM
DCPMM
Memory modules (max.)
16
Memory channels per CPU
8
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Drive bays
Slimline drive bay
1
2.5" compatible
No
Drive bays 2.5" (rear option)
2
Drive bays 3.5" (hotswap)
16
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3/3
USB 3.0 Ports (front/rear/internal)
0/4/3
PCIe x8 Slots (CPU1/CPU2)
1/1
PCIe x16 Slots (CPU1/CPU2)
2/2
USB 2.0 Ports (front/rear/internal)
0/0/2
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Single Expander
Backplane (Conntector)
1x SFF-8643
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X550
Plug type
RJ45
Processor
Processor Manufacturer
Intel
Processor type
3rd Generation Intel® Xeon® Scalable Processors Ice Lake SP
Processors (max.)
2
Processor socket
LGA-4189 (Socket P+)
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Software
Operating Systems (certified)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.2
Red Hat Enterprise Linux 9.0
VMware vSphere 6.7U3
VMware vSphere 7.0U2
VMware vSphere 8.0
Windows Server 2022
Red Hat Enterprise Linux 8.2
Red Hat Enterprise Linux 9.0
VMware vSphere 6.7U3
VMware vSphere 7.0U2
VMware vSphere 8.0
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1000W Netzteil
Other Technical Features
Drive type
Slimline Optical optional
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
Chip
Mainboard
SuperMicro X12DPI-NT6
Chipset
Intel® C621A
Graphics
Graphics (type)
Aspeed AST2600
Mass storage controller
Mass storage controller (type)
Intel® C621A
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
