SKU: Z80-24R2

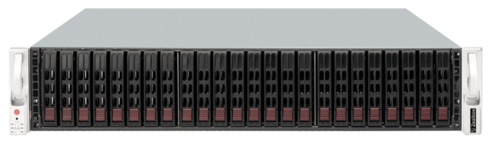

Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Manufacturer:
Zealbox
1
- 2U rackmount chassis with 24 SFF bays
- Open platform with powerful hardware
- Performant virtualization platform
- Very high power density
- Failsafe cooling concept
- Excellent expandability
Zealbox Z80s form an open hardware platform that can be installed in different housing variants according to the customer's performance and interface requirements. However, all Z80 servers have two things in common: They rely on the EPYC CPUs of the AMD high-performance series and operate in indestructible enterprise chassis from Supermicro. The Z80 servers are suitable, for example, for virtualization, cloud computing, hyper-converged storage or simply as high-end enterprise servers.In the various housing variants from two to four height units, our Z80 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z80-24R2 has a 2U rackmount chassis with 24 SFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.
Similar products
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server

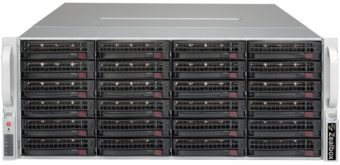

Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-16R3
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server

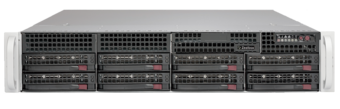

Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

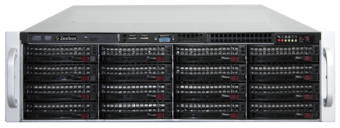

Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

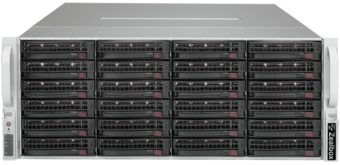

Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

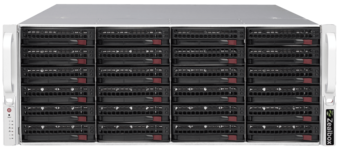

Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08T
Individual and customized enterprise-class servers with AMD CPUs
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
630 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
18 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
Manufacturer
Zealbox
PCIe Generation
3.0
Model
Zealbox Z80-24R2
Memory
Memory modules (type)
RDIMM
LRDIMM
LRDIMM
Memory modules (max.)
16
Memory channels per CPU
8
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Drive bays
2.5" compatible
No
Drive bays 2.5" (hotswap)
24
Drive bays 2.5" (rear option)
2
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
4/1
USB 3.0 Ports (front/rear/internal)
0/2/0
PCIe x8 Slots (CPU1/CPU2)
2/1
PCIe x16 Slots (CPU1/CPU2)
2/0
USB 2.0 Ports (front/rear/internal)
0/2/0
Warranty and service
Optional services
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Hybridunterstützung für NVMe
1x Single Expander
1x Single Expander
Backplane (Conntector)
1x SFF-8643
4x SFF-8643 (NVMe)
4x SFF-8643 (NVMe)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X550
Plug type
RJ45
Processor
Processor Manufacturer
AMD
Processor type
AMD EPYC™ 7001 (NAPLES) Prozessoren
AMD EPYC™ 7002 (ROME) Prozessoren
AMD EPYC™ 7002 (ROME) Prozessoren
Processors (max.)
2
Processor socket
Socket SP3
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Software
Operating Systems (certified)
Windows Server 2019
Windows Server 2016
Citrix XenServer 7.1
Red Hat Enterprise Linux ab 7.4
VMware vSphere ab 6.5U1
Windows Server 2016
Citrix XenServer 7.1
Red Hat Enterprise Linux ab 7.4
VMware vSphere ab 6.5U1
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
Chip
Mainboard
SuperMicro H11DSI-NT
Chipset
AMD SoC
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
AMD SoC
Mass storage controller (interface)
10x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
