SKU: LSIMRSAS9580-8I8E

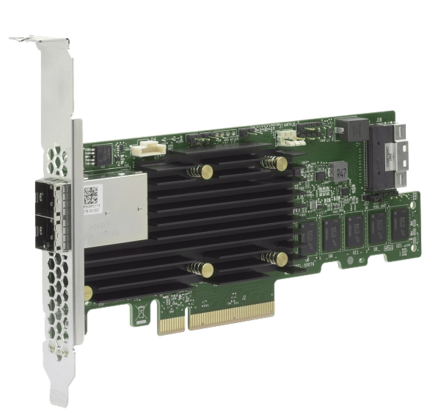

Broadcom/LSI MegaRAID 9580-8i8e
PCIe 4.0 Tri-Mode RAID Controller for SAS,SATA and NVMe
Manufacturer:
1
- Manages up to 240 SAS/SATA devices or 32 NVMe devices per controller
- 8 internal ports (1x SFF-8654) and 8 external ports (2x SFF-8644)
- PCIe 4.0 (x8) card in low profile format
- RAID levels 0, 1, 5, 6, 10, 50 and 60
- CacheVault flash backup in case of power failure
- Drivers for Windows, VMware, Linux (Red Hat, SuSE, Ubuntu), XenServer, CentOS, Debian, Oracle, Fedora, FreeBSD
The 9500 Series MegaRAID adapters are based on Broadcom's SAS3916 and SAS3908 8-lane host PCIe to SAS/SATA/PCIe RAID on Chip (RoC) controllers and are the first RAID adapters to offer both PCIe Gen 4.0 host and PCIe 4.0 storage interfaces. PCIe Gen 4.0 enables these adapters to deliver high bandwidth by delivering twice the bandwidth and 75% more IOPs.Broadcom's Tri-Mode SerDes technology also enables NVMe, SAS or SATA storage devices to operate in a single drive bay. To do this, the adapter negotiates between speeds and protocols to work seamlessly with any of the three types of storage devices. Tri-mode support provides a non-disruptive way to evolve existing data center infrastructure. By upgrading to a tri-mode adapter, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations.
Similar products
SAS RAID Controller
Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Areca ARC-1686-6NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
Show product
SAS RAID Controller
Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1226-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1226-8x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1883I
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-12
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-16
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-24
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883LP
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883X
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-4i
Entry-level four-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-8i
Entry-level eight-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-16i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
Specifications
General
Transferrate
12
Cooling type
Passive
Active cooling
No
Cache
8 GB
PCIe Generation
4.0
Model
Broadcom RAID Controller
Internal connectors
1x SFF-8654
Other Technical Features
Drives (max.)
240
Administration
Serial port
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
Dimensions and Weight
FormFactor
low profile, PCIe x8
Expansion and connectivity
Internal connectors
1x SFF-8654
External connections
2x SFF-8644
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 5, 6, 50, 60, JBOD
