Areca ARC-1686-6NOD - Starline Computer: Storage und Server Lösungen von erfahrenen Experten
SKU: ARC-1686-6NOD

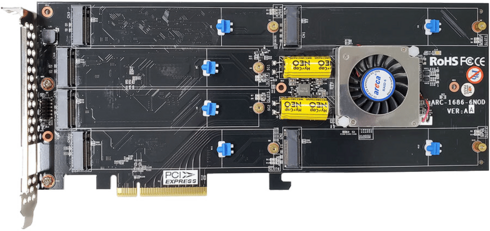

Areca ARC-1686-6NOD

Fast NVMe RAID controller from Areca
Manufacturer:
1
Specifications
  • PCIe 4.0 host interface, PCIe Gen4 x8 lanes with a maximum transfer rate of up to 128 Gbit/s
  • Hardware RAID solution with RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) and JBOD
  • Individual NVMe Power Disable function and Power Loss Protection (PLP)
  • Supercapacitor
  • SED support
  • Drivers for Windows, MacOS, Linux, FreeBSD/Free-NAS/NAS4Free/XigmaNAS, TrueNAS, unRAID, XenServer Citrix Hypervisor, OpenBSD & NetBSD, VMware

The 1686 series controllers have an ARM A15 dual-core processor built in, which the developers created as a RAID on Chip (ROC) controller. With eight lanes on the PCIe bus Gen 4.0, the ARC-1686 models provide higher performance levels for SATA and NVMe SSDs.

The ultra-fast, reliable and ultra-compact RAID controller family is said to enable enterprises to tackle high-speed data acquisition and processing.

The ARC-1686-6NOD model accommodates six SSDs, supporting RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) and JBOD.


Similar products
SAS RAID Controller
Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
SAS RAID Controller
Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
SAS RAID Controller
Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
SAS RAID Controller
Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
SAS RAID Controller
Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
SAS RAID Controller

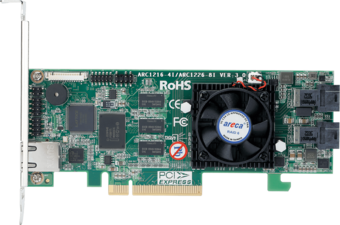

Areca ARC-1226-8i
