SKU: LSIMRSAS9361-4I

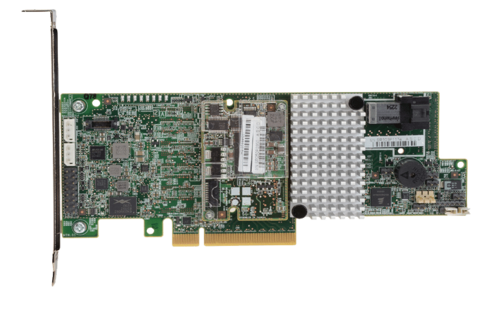

Broadcom/LSI MegaRAID SAS 9361-4i
SATA + SAS RAID controller for 12 Gbit/s in the midrange
Manufacturer:
1
- Manages up to 128 SATA or SAS drives
- Four internal 12 Gb/s SATA and SAS ports (mini-SAS SFF864)
- PCIe 3.0 card in low profile format
- RAID levels 0, 1, 5, 6, 10, 50 and 60
- Optional flash cache protection with CacheVault
- Drivers for Windows, Linux, Solaris (x86), FreeBSD, VMware
Data centers, cloud computing, or high-performance environments in general not only require large amounts of storage capacity, they must also provide the data protection and performance needed today. Broadcom's (formerly LSI) MegaRAID SAS 9361-4i 12 Gbps controllers meet these requirements by delivering on their proven performance to provide servers with high storage requirements the RAID security they need to do so.
Similar products
Specifications
General
Transferrate
12
Cooling type
Passive
Active cooling
No
Cache
1 GB
PCIe Generation
3.0
Model
Broadcom RAID Controller
Internal connectors
1x SFF-8643
Other Technical Features
Drives (max.)
128
Administration
Serial port
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
Dimensions and Weight
FormFactor
low profile, PCIe x8
Expansion and connectivity
Internal connectors
1x SFF-8643
