SKU: SCS-RS501AE12RS12U

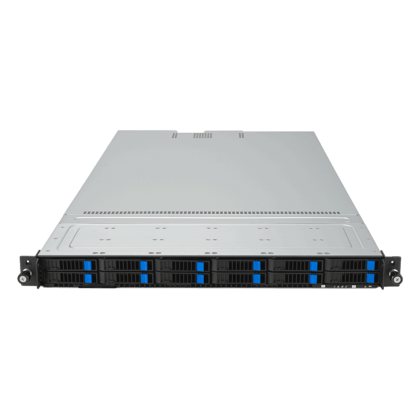

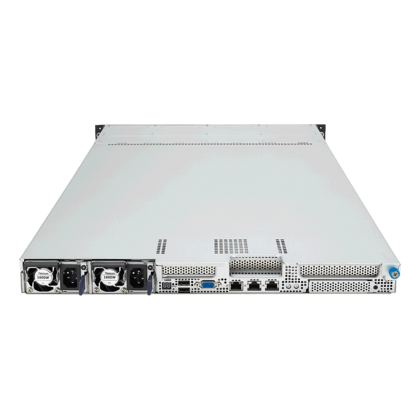

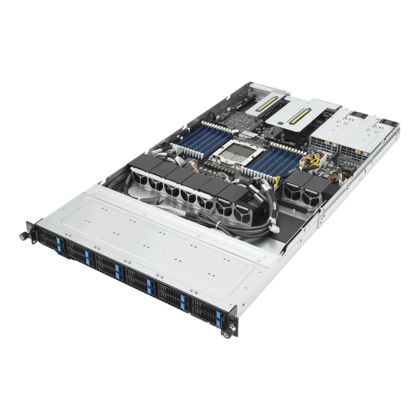

ASUS RS501A-E12-RS12U
1U Single-Socket Server with AMD EPYC CPUs, 12 NVMe bays, 3 PCIe 5.0 slots, 2 M.2, OCP 3.0, for up to 2 single-slot GPUs
Manufacturer:
Asus
1
- Powered by Single-Socket AMD EPYC™ 9005/9004 Processors (SP5 socket)
- Support for up to 24 DDR5 DIMMs (up to 2.3 TB, 5200+ MHz)
- Up to 12 all-flash NVMe drives (2.5")
- Up to 3 PCIe 5.0 slots + 2 single-slot GPUs
- OCP 3.0 network module + 2x M.2 PCIe 5.0 x4
- Integrated ASUS ASMB11-iKVM for remote management
This ASUS server targets performance-intensive applications where high computing power, large data volumes, and scalable infrastructure are crucial. Primary markets include High Performance Computing (HPC), AI-based forecasting and analytics workloads, terabyte-scale data warehouse applications, and demanding virtualization environments. The storage and expansion concept is optimized for scalability, featuring up to twelve NVMe all-flash drives and three PCIe 5.0 slots for high bandwidth and future-proof expansions. Flexible networking includes OCP 3.0 support, dual M.2 slots, and integrated ASUS ASMB11-iKVM for remote management. Cooling uses an advanced airflow solution designed for processors with up to 360 W TDP.
Similar products
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server

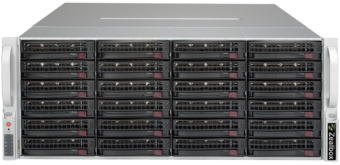

Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-16R3
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

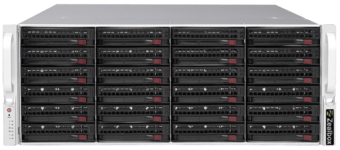

Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Specifications
Dimensions and Weight
Width
449 Millimeter (mm)
Depth
842.5 Millimeter (mm)
Height
43.85 Millimeter (mm)
Weight
19.16 Kilogram (kg)
FormFactor
1 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
Manufacturer
Asus
PCIe Generation
5.0
Model
RS501A-E12-RS12U
Memory
Memory modules (type)
RDIMM
Memory modules (max.)
24
Memory channels per CPU
12
Memory capacity (fully populated)
3TB
Drive bays
Drive bays 2.5" (hotswap)
12
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3 + 1 OCP3.0
PCIe x16 Slots (CPU1/CPU2)
4 (1 OCP3.0)
Warranty and service
Optional services
5 Jahre Vor-Ort-Service 24/7
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
Other services
Kundenimage Vorinstallation
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (Type)
Hybridunterstützung für NVMe
GPU
GPUs (max.)
2
GPU supported
Single Slot
Network
# networking ports
2x
Networking (type)
Gigabit Ethernet
Networking controller
Intel® i350AM2
Plug type
RJ45
Processor
Processor Manufacturer
AMD
Processor type
AMD EPYC™ 9004 (Genoa) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
AMD EPYC™ 9005 (Turin) Prozessor
Processors (max.)
1
Processor socket
LGA 6096
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1600W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Chip
Mainboard
ASUS K14PA-U24-T
Chipset
SoC
Graphics
Graphics (type)
AST26000
