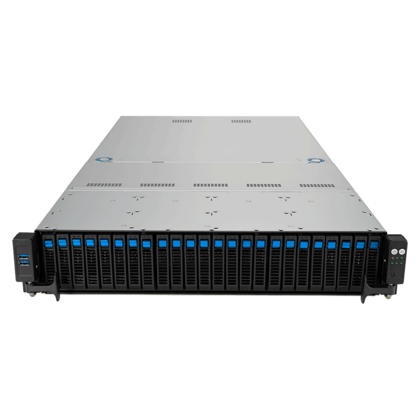

699458e6dc5af274586233-3a5d569999938bddd66162195bacf9262c99c637_ASUS_RS521A_E12_RS24U_front.png

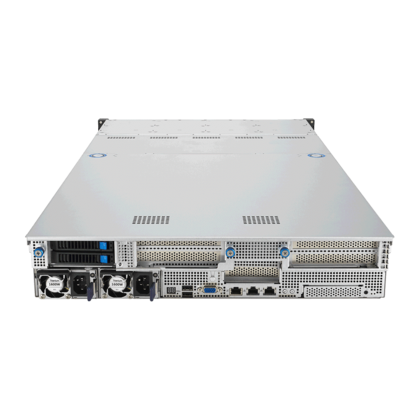

699458e6dcf5d585837849-b73c4755959629de06c75cdee99a9d85a63a3d9e_ASUS_RS521A_E12_RS24U_back.png

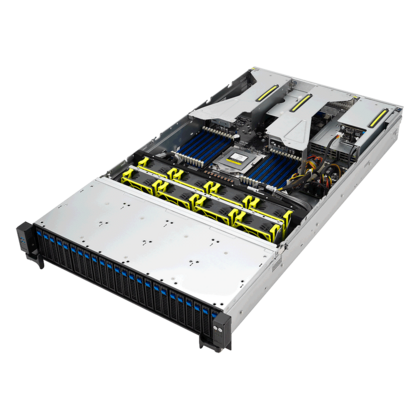

699458e6ddaae474422511-0b509efde1b5315300811b630e01502ae817bb11_ASUS_RS521A_E12_RS24U_sideopen.png

SKU: SCS-RS521AE12RS24X

ASUS RS521A-E12-RS24X

2U Single-Socket Server with AMD EPYC CPUs, 24 NVMe bays, 1 PCIe 5.0 slot, 2 M.2, OCP 3.0, for up to 2 dual-slot GPUs

Manufacturer:

Specifications

Powered by Single-Socket AMD EPYC 9005/9004 Processors (SP5, up to 360 W TDP with EVAC)
Support for up to 24 DDR5 DIMMs (up to 2.3 TB, 5200 MHz on 9005/4800 MHz on 9004)
Up to 24 hot-swap NVMe/SAS/SATA drives (2.5") + 2x rear SATA + 2x M.2 PCIe 4.0 x4
1 PCIe 5.0 slot + OCP 3.0 PCIe 5.0 x16
GPU support for up to 2 dual-slot GPUs
1+1 redundant 1600W/2000W 80PLUS Titanium power supplies

This ASUS server targets performance-intensive applications where high computing power, large data volumes, and scalable infrastructure are crucial. Primary markets include High Performance Computing (HPC), AI-based forecasting and analytics workloads, terabyte-scale data warehouse applications, and demanding virtualization environments. The storage and expansion concept is optimized for scalability, featuring up to twenty-four hot-swap NVMe/SAS/SATA drives (2.5"), two rear SATA bays, and one PCIe 5.0 slots, 1x OCP 3.0 PCIe 5.0 x16 for high bandwidth and future-proof expansions. Networking includes dual Intel I350-AM2 1GbE LAN ports plus dedicated GbE management LAN and integrated ASUS ASMB11-iKVM for remote management. Cooling uses four 80x56mm case fans, optimized for up to 360 W TDP processors with EVAC cooling.
