SKU: SCS-RS700AE13RS4U

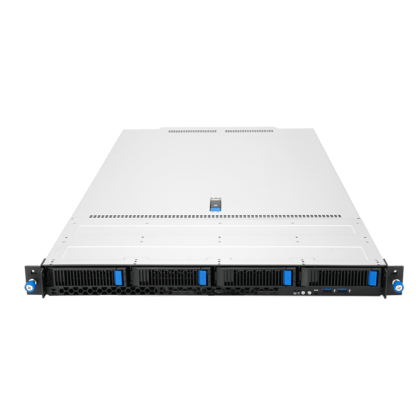

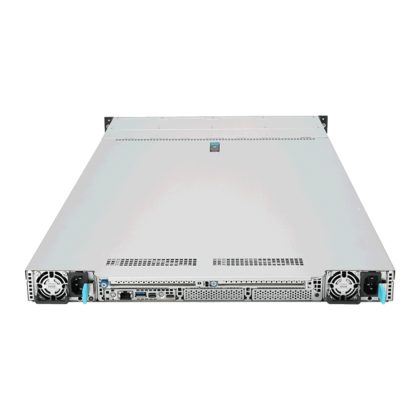

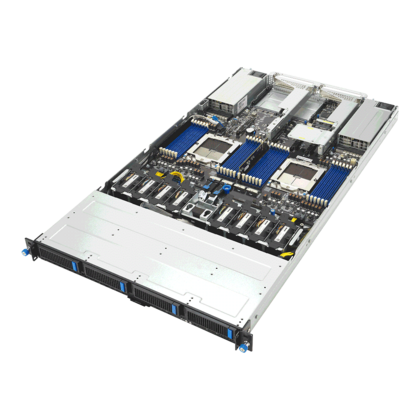

ASUS RS700A-E13-RS4U

1U Dual-Socket Server with AMD EPYC 9005 CPUs, 4 tri-mode storage bays (NVMe/SATA/SAS), 2 PCIe 5.0 slots and 2 OCP 3.0

Manufacturer:

Specifications

Powered by Dual-Socket AMD EPYC 9005 Processors (SP5 LGA 6096, up to 400W TDP)
Support for up to 24 DDR5 RDIMM/3DS RDIMM (up to 3072GB per socket, 6400/5600 MHz)
Up to 4 tri-mode NVMe/SATA/SAS drives (HBA/RAID card required for SAS)
4 expansion slots: 2x PCIe Gen5 x16 (FHHL) + 2x OCP 3.0 Gen5 x16 (SFF)
Tool-less design with top cover handle and optimized DC-SCM/OCP 3.0 card
Enhanced security with PFR FPGA Root-of-Trust and TPM 2.0

This ASUS server targets performance-intensive applications where high computing power, large data volumes, and scalable infrastructure are crucial. Primary markets include High Performance Computing (HPC), AI-based forecasting and analytics workloads, terabyte-scale data warehouse applications, and demanding virtualization environments. The storage and expansion concept features up to four front-mounted tri-mode drives (NVMe/SATA/SAS) and four PCIe 5.0 expansion slots (2x PCIe Gen5 x16 FHHL + 2x OCP 3.0 Gen5 x16 SFF) for high bandwidth and future-proof scalability. The modular DC-MHS architecture enables seamless integration and disruption-free maintenance. Cooling is optimized for dual AMD EPYC 9005 processors with up to 400W TDP and 192 Zen 5 cores, complemented by PFR FPGA Root-of-Trust security and TPM 2.0
