SKU: LSIMRSAS9380-8E

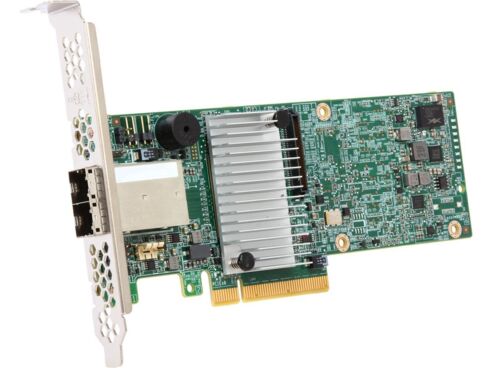

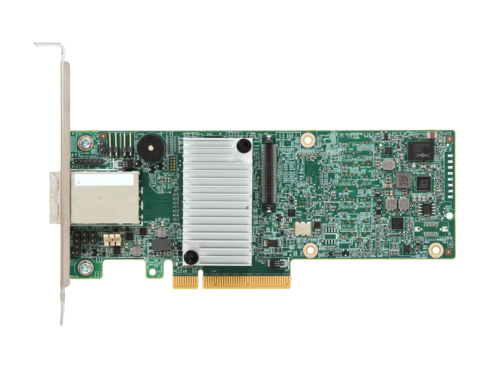

Broadcom/LSI MegaRAID SAS 9380-8e
RAID controller for enterprise data centers
Manufacturer:
Broadcom
1
- Manages up to 240 SATA or SAS drives
- Eight external 12 Gb/s SAS ports via two mini-SAS SFF8644
- PCIe 3.0 card in low profile format
- RAID levels 0, 1, 5, 6, 10, 50 and 60
- Optional flash cache protection with CacheVault
- Drivers for Windows, Linux, Solaris (x86), FreeBSD, VMware
Hyperscale, data center and high-performance computing environments not only require large amounts of storage capacity, but must also provide the data protection and performance that today's applications and end users demand. Broadcom's (formerly LSI) MegaRAID SAS 9380-8e 12 Gbps controllers meet these requirements by delivering on their proven performance to provide servers with high storage requirements the RAID security they need to do so.
Similar products
SAS RAID Controller
Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Areca ARC-1686-6NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
Show product
SAS RAID Controller
Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

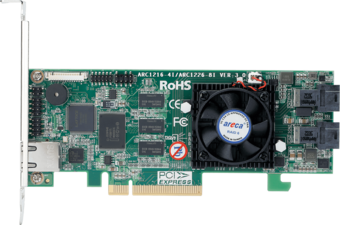

Areca ARC-1226-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1226-8x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1883I
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-12
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-16
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-24
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883LP
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883X
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-4i
Entry-level four-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-8i
Entry-level eight-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-16i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
Specifications
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passiv
Cache
1 GB
Transferrate
12
Manufacturer
Broadcom
PCIe Generation
3.0
Model
Broadcom RAID Controller
Expansion and connectivity
External connections
2x SFF-8644
Other Technical Features
Drives (max.)
240
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
