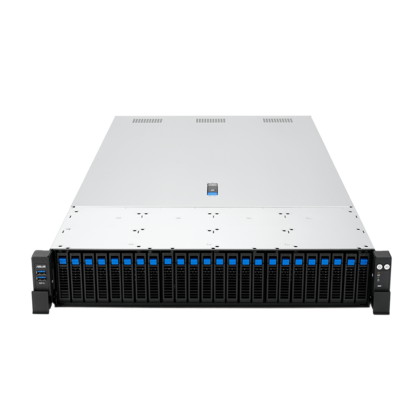

699556065d490563724041-87adc911be5b0f15b757a2cfe735bc25e7b7098e_ASUS_RS720A_E13_RS24G_front.png

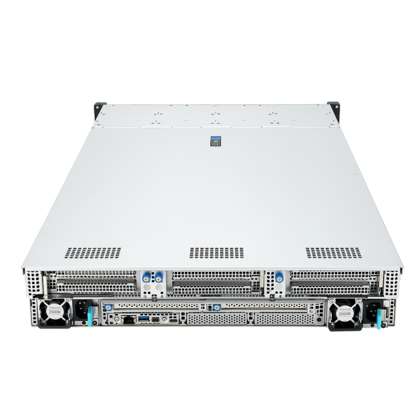

699556065da5f132771417-cc6b3f1a91e27f9fb9fb1c6c9eee63110b0229ab_ASUS_RS720A_E13_RS24G_back.png

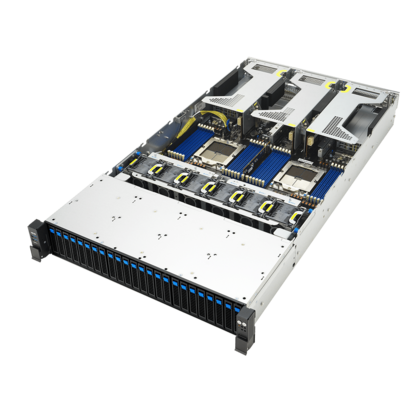

699556065e016677934434-f57045e21e38f8cff7a064e1f1aa74b727b27997_ASUS_RS720A_E13_RS24G_sideopen.png

SKU: SCS-RS720AE13RS24G

ASUS RS720A-E13-RS24G

2U dual‑socket GPU server, 24 all‑flash NVMe bays, eight PCIe 5.0 slots, two OCP 3.0 – for up to three dual‑slot GPUs with 350 W each.

Manufacturer:

Specifications

Powered by dual‑socket AMD EPYC 9005 processors (Socket SP5, up to 360 W TDP; up to 350 W when using 3 GPUs).
Supports up to 24 DDR5 RDIMM/3DS RDIMM, up to 3.0 TB, up to 6400 MHz (1DPC).
24x 2.5" hot‑swap bays: 8x NVMe + 16x NVMe/SAS/SATA (SAS via HBA/RAID).
Up to 10 expansion slots in total: including up to 5x PCIe 5.0 x16 (FHFL/FHHL) + 2x OCP 3.0 PCIe 5.0 x16.
GPU‑optimized design for up to 3 dual‑slot GPUs (e.g. NVIDIA H100) with up to 350 W TDP each.
1+1 redundant 3200 W 80 PLUS Titanium power supplies.

This ASUS server targets GPU‑ and compute‑intensive workloads such as AI training and inference, High Performance Computing (HPC), technical simulations and data‑intensive analytics and virtualization use cases. The chassis provides 24 front hot‑swap 2.5" drive bays, comprising eight dedicated NVMe positions and sixteen hybrid NVMe/SAS/SATA bays (SAS via dedicated HBA/RAID controller), enabling high‑performance all‑flash storage configurations. For expansion, it offers up to ten PCIe 5.0 slots in total – including up to five PCIe 5.0 x16 (FHFL/FHHL) and two OCP 3.0 PCIe 5.0 x16 slots – allowing installation of up to three dual‑slot GPUs such as NVIDIA H100 with up to 350 W TDP each. The platform supports up to 3.0 TB of DDR5 ECC memory across 24 DIMM slots and is powered by 1+1 redundant 3200 W 80 PLUS Titanium power supplies, making it ideal for continuous datacenter operation.
