SKU: NA338TB3

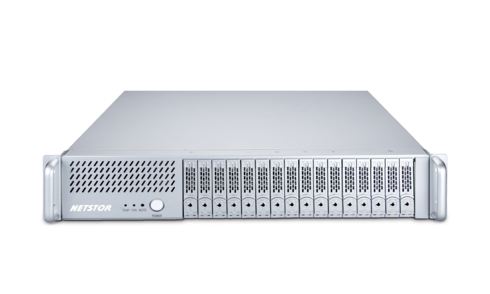

Netstor NA338TB3

Mac Server with Thunderbolt3 Pulse
Manufacturer:
1
Specifications
  • 2x Thunderbolt3 with 40 Gbit/s host interface

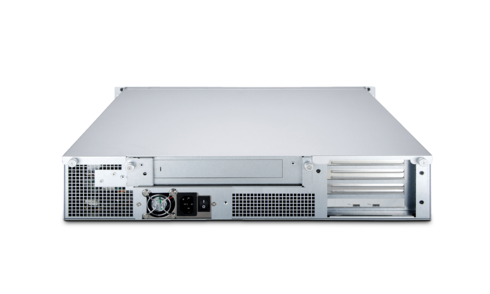

  • Slot for a Mac mini on the back
  • 3x PCIe slots for RAID controllers and other cards
  • 16x SFF SAS (12 Gbit/s) or SATA (6 Gbit/s) hard drives or SSDs, hot swappable
  • Built-in Areca ARC-1883ix-16 RAID controller
  • For macOS X 10.12.3 or later, Windows 7 or later

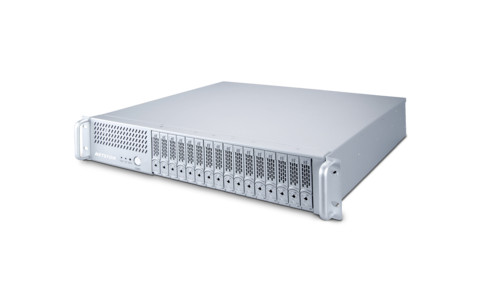

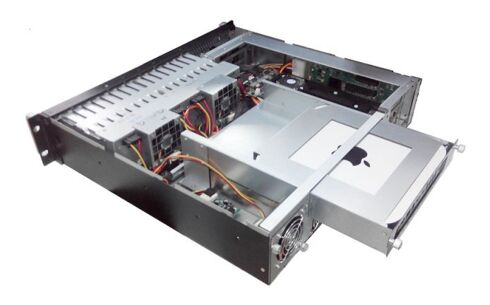

The NetStor NA338TB3 is a 2U enclosure for mounting a Mac mini, three 3 PCIe slots and 16 SFF drives. The SAS/SATA enclosure is ideal when there is no space available in the Mac, server or workstation, but PCIe slots and high storage capacity are still needed.The built-in Mac mini connects to the enclosure via a Thunderbolt cable. The three available PCIe slots - full length - are compatible with popular video editing cards such as those from BlackMagic, Matrox, AJA, or RED.A pre-installed 12 Gbps SAS RAID controller from Areca provides high data transfer rates to the drives, enabling 4K video editing, recording, and other applications. The controller is also equipped with an external miniSAS x4 HD expansion port that provides additional storage capacity via JBODs if needed.


Similar products
Thunderbolt
Areca TB3 cable 10 m
Thunderbolt3 active optical cable
To the store
Thunderbolt
Areca TB3 cable 15 m
Thunderbolt3 active optical cable
To the store
Thunderbolt

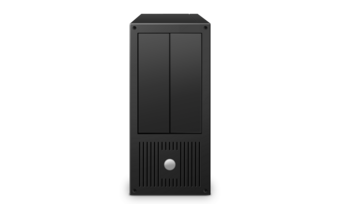

Netstor NS722TB3
Thunderbolt 3 desktop enclosure for two LTO drives - SAS expansion port included
To the store
Thunderbolt

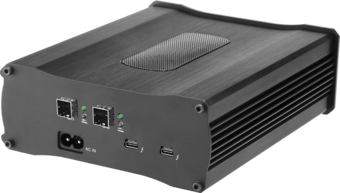

Areca ARC-4108T3
Work with SAS on a MacBook Pro without PCIe? No problem via Thunderbolt3 expansion
To the store
Thunderbolt
Areca ARC-4607T3
Expansion Solution with 40 Gigabit: Via Fibre Channel to the Thunderbolt3 host
To the store
Thunderbolt

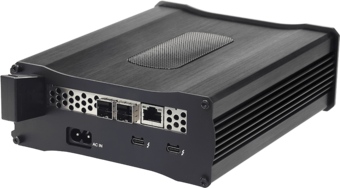

Areca ARC-4883T3
40 Gigabit Expansion Solution: Thunderbolt3 with RAID controller and SAS ports
To the store
Thunderbolt

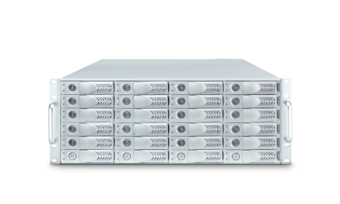

Netstor NA381TB3
Mac Server with Thunderbolt3 Pulse
To the store
Thunderbolt

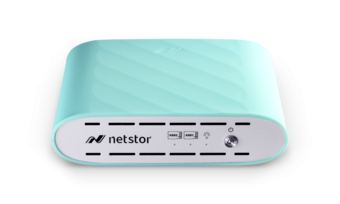

Netstor NA611TB3
Portable NVMe storage with Thunderbolt3
To the store
Thunderbolt

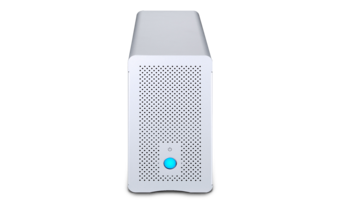

Netstor NA211TB3
Additional PCIe slots for Mac computers via Thunderbolt3
To the store
Thunderbolt

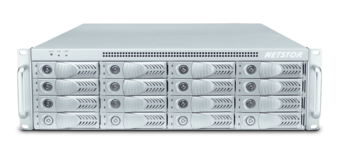

Netstor NA333TB3
16 drive bays and PCIe expansion via Thunderbolt 3
To the store
Thunderbolt

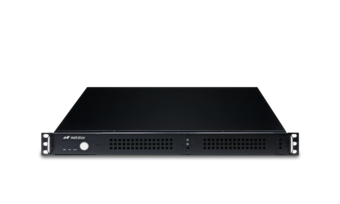

Netstor NS372TB3
Thunderbolt3 rackmount frame for two LTO drives
To the store
Thunderbolt

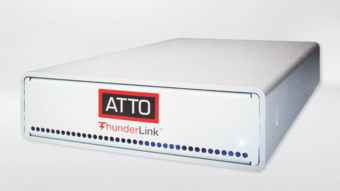

ATTO ThunderLink FC 2162
On the move with Thunderbolt in Fibre Channel networks
To the store
Thunderbolt

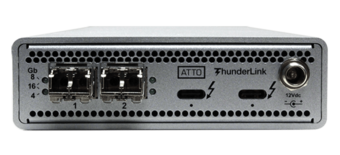

ATTO ThunderLink FC 3162
On the move with Thunderbolt in Fibre Channel networks
To the store
Thunderbolt

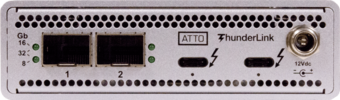

ATTO ThunderLink FC 3322
On the move with Thunderbolt in Fibre Channel networks
To the store
Thunderbolt

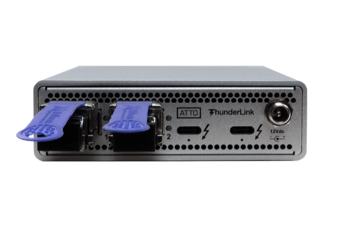

ATTO ThunderLink N3 3102
On the move with Thunderbolt in the Ethernet
To the store
Thunderbolt

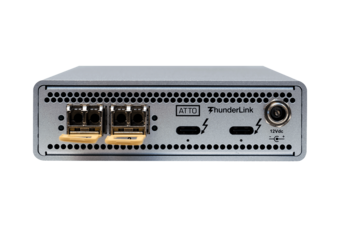

ATTO ThunderLink NS 3252
On the move with Thunderbolt in the Ethernet
To the store
Thunderbolt

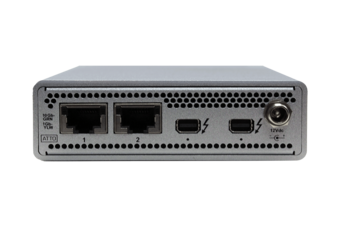

ATTO ThunderLink NT 2102
On the move with Thunderbolt in the Ethernet
To the store
Thunderbolt

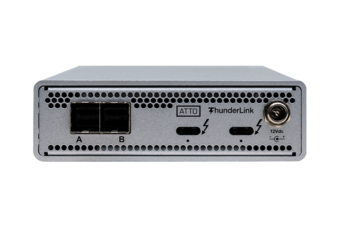

ATTO ThunderLink SH 3128
Accessing SAS Devices with Thunderbolt
To the store
Thunderbolt

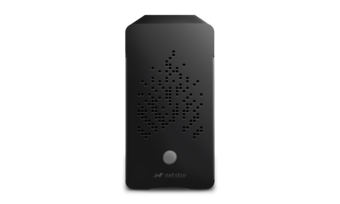

Netstor HL23T-Plus
